*Please Note: DVI/HDMI/VGA port CANNOT be used simultaneously

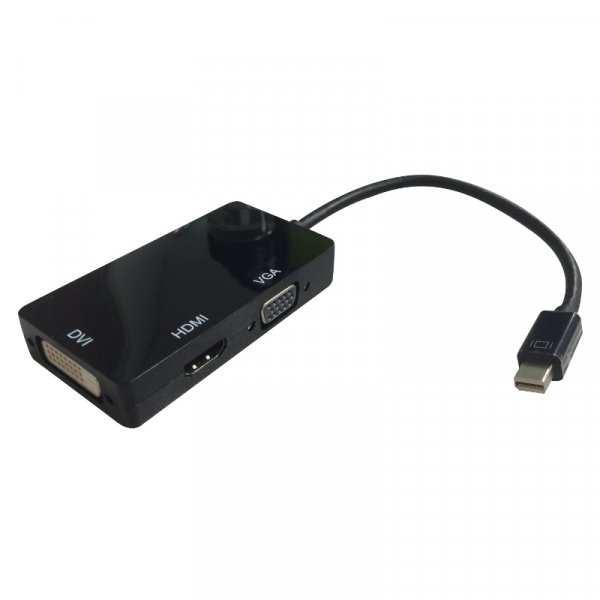

This adapter seamlessly connects Mac Book, Mac Book Pro, or Mac Book Air with a Mini DisplayPort to high definition displays with HDMI, DVI or VGA input port. Using this adapter, you no need to buy 3 separate Mini DisplayPort adapters. It not only saves your money but also solves the trouble of plugging in and out, because there is only one Mini Display port in Mac notebook.

Note: You can only plug one port among three output ports at one time.

FEATURES:

Support Mini DisplayPort 1.1a Dual-mode input. The HDMI can support audio output for iMac (Late 2009) and MacBook Pro (Mid 2010) Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color. Automatic detect the display by plugging and unplugging it. Powered from Mini DisplayPort source.

SPECIFICATIONS:

Signal Inputs/Output

• Input Signal Mini DisplayPort 1.1a
• Output Video HDMI/DVI/VGA
  • Input/Output Connector Input: Mini DisplayPort Male 20pin
  • Output: HDMI Female Type A 19pin DVI Female (24+1)
  • VGA Female 15Pin

Operating Frequency

• Vertical Frequency Range 50/60Hz
• Video Amplifier Bandwidth 2.25Gbps/225MHz

Resolutions

• HDMI/DVI/VGA 480i/480p,576p,720p,1080i/1080p

Warranty

• Limited Warranty 1 Year

Environmental

• Operating Temperature 0? to +70?
• Operating Humidity 10% to 85 % RH (no condensation)
• Storage Temperature -10? to +80?
• Storage Humidity 5% to 90 % RH (no condensation)

Power Requirement

• External Power Supply No external power needed
• Power consumption (Max) 700mW

Accessories Adapter

• User Manual
