Overview:

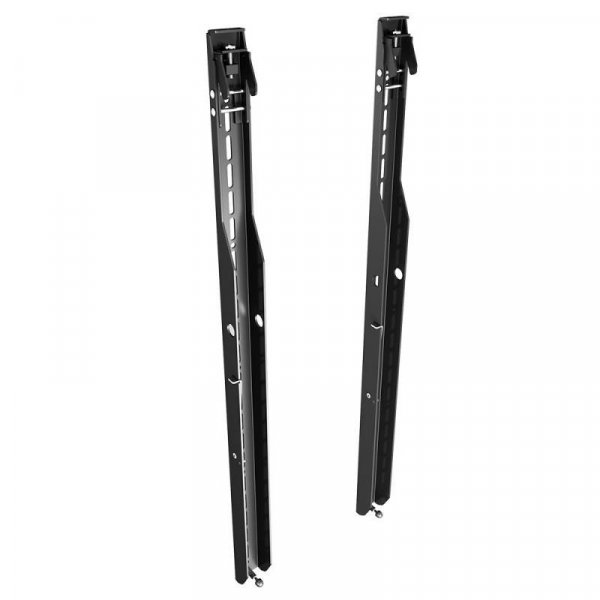

The TH-VWVP is a portrait display bracket set (2 brackets per set) for use with the Telehook Universal Video Wall Mount. It is compatible with a universal range of video panels thanks to its unlimited width VESA mounting hole pattern (200mm to 800mm high). A complete solution can be configured via the use of a combination of, 50cm (TH-VWP-050), 80cm (TH-VWP-080), 100cm (TH-VWP-100) or 160cm (TH-VWP-160) wall plates and additional bracket sets as required. The Telehook Universal Video Wall Mounting System is an industry leading modular, interchangeable and upgradeable product range that supports a wide variety of video wall configurations; from a modest 2x2 configuration all the way up to 12x12 and beyond. It incorporates a range of high end features that offer high security, time saving and easy installation, and clever adjustment options. Post-installation horizontal adjustment, screen leveling and wall leveling all assist in making the installation process quicker and easier.

Features:

• Modular design gives you the freedom to expand your set up as necessary
• Clever time saving and easy installation features
• Simple hook on installation system
• Post installation adjustment for screen alignment and uneven wall corrections
• Ultra slim design
• Security fixing points for each display
• Material: Steel
• Warranty: 10 Years

Specifications:

• General
• BrandTelehook
• Accessory typeVideo wall parts
• ColourBlack

• Compatibility
• Maximum supported weight, per display (kg)165
• VESA mounting hole patternUniversal
• Maximum supported notebook size (mm)-
• Universal Width (mm) From200
• Universal Height (mm) From200
• Universal Height (mm) To800

• Range of movement
• Spring assisted height adjustability-
• Tilt adjustment-
• Pan adjustment-

• Installation
• Quick release mechanismYes
• Mounting hardware includedYes

• Other
• Warranty-
• Material-
• Other features-
• Theft resistant designYes

• Packaging dimensions
• Length, single unit (cm)100.5
• Width, single unit (cm)16.3
• Height, single box (mm)7.5
• Weight, master carton (kg)25.5
• Single units per master pack4
• Length, master carton (cm)102.1
• Width, master carton (cm)16.6
• Height, master carton (cm)30.9
• Weight, single unit (kg)6.3
