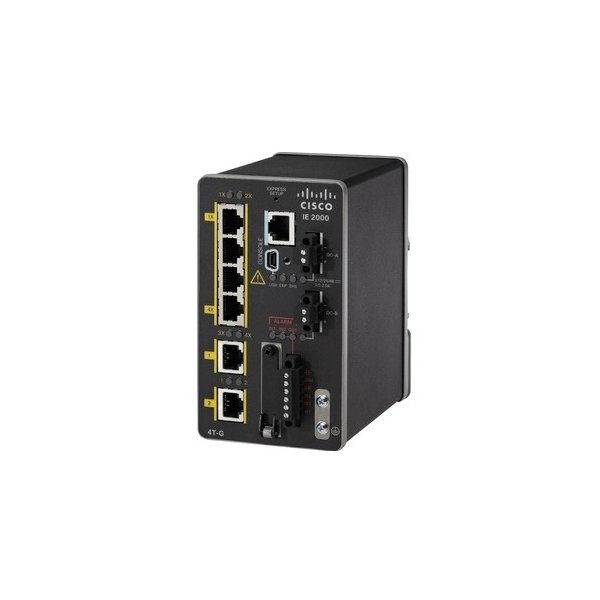

IE-2000-4TS-L Specification
|
Physical Specification
|
Total Ports
|
6
|
RJ45 ports
|
4 FE
|
SFP ports
|
2 FE
|
Manufacturing license
|
LAN Lite
|
Hardware
|
● 256 MB DRAM with ECC memory
● IEEE 1588v2 FPGA
● 64 MB on-board flash memory
● 1GB removable SD flash memory card (optional)
● Mini-USB connector
|
Alarm
|
● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
|
Power consumption
|
● 4-port downlink models: 9.5-15 W
|
Connectors and cabling
|
● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
Dimensions (H x W x D)
including DIN rail
|
● IE-2000 6 ports (copper downlinks) chassis: 5.1”H x 2.95”W x 4.51”D in (130mm H x 74.9mm W x 115mm D)
|
Weight
|
● IE-2000 6 ports chassis: 2.45 lb (1.11 kg)
|
IE2000 Software Features
|
LAN Lite license
|
Baseline features
|
Layer 2 switching
|
IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
|
Security
|
SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
|
Multicast
|
IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
|
Management
|
Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
|
Industrial Ethernet
|
EtherNet/IP, Profinet v2
|
LAN Base license
|
Additional features
|
Layer 2 switching
|
VTPv3, EtherChannel, Voice VLAN, Flexlink
|
Security
|
IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
|
Quality of service
|
IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
|
Management
|
Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
|
Industrial Ethernet
|
IEEE 1588 PTPv2
|
IPv4 routing
|
IPv4 static routing
|
IPv6 routing
|
IPv6 host support, HTTP over IPv6, SNMP over IPv6
|
Enhanced LAN Base
|
Additional features
|
Industrial management
|
Layer 2 switching with 1:1 static Network Address Translation (NAT)
|
IP Lite license
|
Additional features
|
IPv4 routing
|
RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.
|
IPv6 Routing
|
IPv6 Static routing, OSPFv3
|
Security
|
FIPS 140-2
|
Embedded Event Manager
|
EEM feature enabled with IP Lite license
|
DNA Essentials
|
Additional features
|
Cisco DNA Center
|
Discovery, topology, inventory, software image management
|
Visibility
|
DNA assurance, Device 360
|
Day-zero network bring-up automation
|
Cisco Network Plug-and-Play application
|
