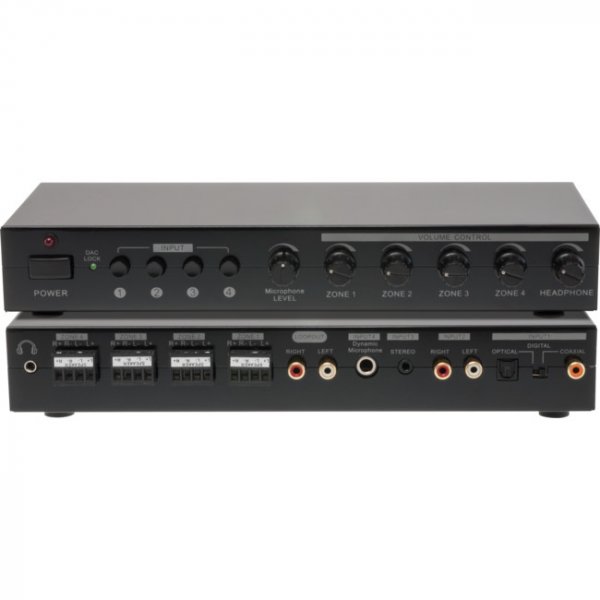

Pro2 4x Source / 4x Zone Stereo Amp Power Amplifier - Inbuilt Dac
Delivery
With a diverse range of inputs including digital optical or coaxial and dynamic microphone inputs and the ability to adjust each zones volume independently the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit increasing the number of zones further
Key Specifications- Four-in and five-outIN 1x Digital Optical / Coaxial selectable 1x RCA Stereo 1x 3.5mm Stereo 1x Dynamic Microphone inputOUT 4 Speaker output 1 Headphone output
- Built-In audio digital to analogue converter DAC Audio DAC Lock indicator
- Independent microphone level control
- Individual speaker volume control
- Provides line loop-out for expanding to more zones
- Large detachable terminal block supplied for quick and easy installation Screw terminals handle wire sizes from 24 to 12 gauge
Speaker Audio Power Amplifier x4 Specifications
- Amplifier Type Stereo Class-D
- Output power 15WRMS per channel RL4 ohm
- THDN 0.06 RL8 ohm f 1 kHz
- Minimum Load Resistance 4 ohm
- Includes Speaker Protection circuit.
Earphone Audio Power Amplifier Specifications
- Output power105mWRMS per channel
- THDN 0.05 RL16 ohm f 1 kHz
- Minimum Load Resistance 16 ohm
General Specifications
- Power Consumed 9A Max
- Power Source DC 12 Volts
- Size LxWxH 285mm x 128mm x 43mm
- Net Weight Unit only 0.8 Kg
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
