StarTech 12U Adjustable Depth 4 Post Server Rack
Delivery
Overview
12U Adjustable Depth Open Frame 4 Post Server Rack Cabinet - Flat Pack w/ Casters / Levelers and Cable Management Hooks - 12U4 Post Rack - Open Frame Rack - 12U Server Rack

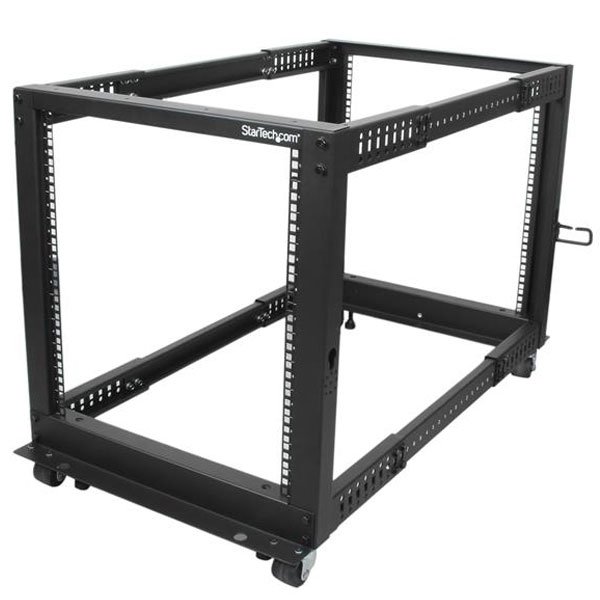

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
-
Dell WD22TB4 Thunderbolt 4 Dock
$284.00
Customer Also Viewed
Product Overview
The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
2-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Type |
Steel |
|
External Depth |
26.1 in [661.8 mm] |
|
External Height |
25.1 in [637.5 mm] |
|
External Width |
23.6 in [600 mm] |
|
Height with Casters |
28 in [710 mm] |
|
Internal Height |
21.2 in [538 mm] |
|
Internal Width |
18.3 in [465 mm] |
|
Maximum Mounting Depth |
40 in [1016 mm] |
|
Minimum Mounting Depth |
22 in [558.8 mm] |
|
Product Weight |
54.3 lb [24.6 kg] |
|
Hardware |
|
|
Casters |
Included |
|
Fan(s) |
No |
|
Frame Type |
Open Frame |
|
Front Door Type |
Open |
|
Industry Standards |
DIN 41494 |
|
|
EIA/ECA-310-E |
|
|
IEC 60297-3-100 |
|
Key Lock |
No |
|
Rack Type |
4-Post |
|
U Height |
12U |
|
Performance |
|
|
Weight Capacity |
1202.9 lb [544.3 kg] |
|
Packaging Information |
|
|
Flat Pack |
Yes |
|
Shipping (Package) Weight |
57 lb [25.8 kg] |
|
What's in the Box |
|
|
Included in Package |
2 - Left Vertical Rail |
|
|
2 - Right Vertical Rail |
|
|
2 - Base Bracket |
|
|
8 - Corner Section |
|
|
4 - Center Section |
|
|
2 - Top Bracket |
|
|
48 - M8 Bolt |
|
|
48 - M8 Washer |
|
|
1 - M8 (13mm) Wrench |
|
|
1 - M6 (10mm) Wrench |
|
|
1 - Phillips Screwdriver |
|
|
24 - M6 Cage Nut |
|
|
24 - PVC Cup Washer |
|
|
24 - M6 Phillips Head Screw |
|
|
4 - Cable Management Hook |
|
|
4 - Hook Mounting Screw |
|
|
4 - Casters |
|
|
4 - Leveling Feet |
|
|
16 - M6 Screw |
|
|
16 - M6 Flat Washer |
|
|
16 - M6 Flange Nut |
|
|
4 - Grounding Wires |
| Brand | StarTech |
