StarTech 25U Adjustable Depth 4 Post Server Rack 4POSTRACK25U
Delivery
Overview
25U Adjustable Depth Open Frame 4 Post Server Rack Cabinet - Flat Pack w/ Casters / Levelers and Cable Management Hooks - 25U 4 PostRack - Open Frame Rack - 25U Server Rack
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview

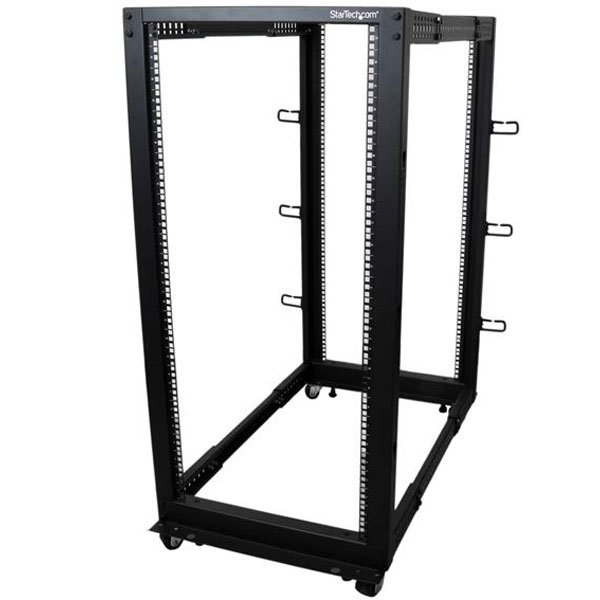

The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment..
2-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Type |
Steel |
|
External Depth |
26.1 in [661.8 mm] |
|
External Height |
47.8 in [1215.3 mm] |
|
External Width |
23.6 in [600 mm] |
|
Height with Casters |
50.8 in [1290 mm] |
|
Internal Height |
43.9 in [1115.8 mm] |
|
Internal Width |
18.3 in [465 mm] |
|
Maximum Mounting Depth |
40 in [1016 mm] |
|
Minimum Mounting Depth |
22 in [558.8 mm] |
|
Product Weight |
65.5 lb [29.6 kg] |
|
Hardware |
|
|
Casters |
Included |
|
Fan(s) |
No |
|
Frame Type |
Open Frame |
|
Front Door Type |
Open |
|
Industry Standards |
DIN 41494 |
|
|
EIA/ECA-310-E |
|
|
IEC 60297-3-100 |
|
Key Lock |
No |
|
Rack Type |
4-Post |
|
U Height |
25U |
|
Performance |
|
|
Weight Capacity |
1202.9 lb [544.3 kg] |
|
Packaging Information |
|
|
Flat Pack |
Yes |
|
Shipping (Package) Weight |
69.7 lb [31.6 kg] |
|
What's in the Box |
|
|
Included in Package |
2 - Left Vertical Rail |
|
|
2 - Right Vertical Rail |
|
|
2 - Base Bracket |
|
|
8 - Corner Section |
|
|
4 - Center Section |
|
|
2 - Top Bracket |
|
|
48 - M8 Bolt |
|
|
48 - M8 Washer |
|
|
1 - M8 (13mm) Wrench |
|
|
1 - M6 (10mm) Wrench |
|
|
1 - Phillips Screwdriver |
|
|
32 - M6 Cage Nut |
|
|
32 - PVC Cup Washer |
|
|
32 - M6 Phillips Head Screw |
|
|
12 - Cable Management Hook |
|
|
12 - Hook Mounting Screw |
|
|
4 - Casters |
|
|
4 - Leveling Feet |
|
|
16 - M6 Screw |
|
|
16 - M6 Flat Washer |
|
|
16 - M6 Flange Nut |
|
|
4 - Grounding Wires |
| Brand | StarTech |
