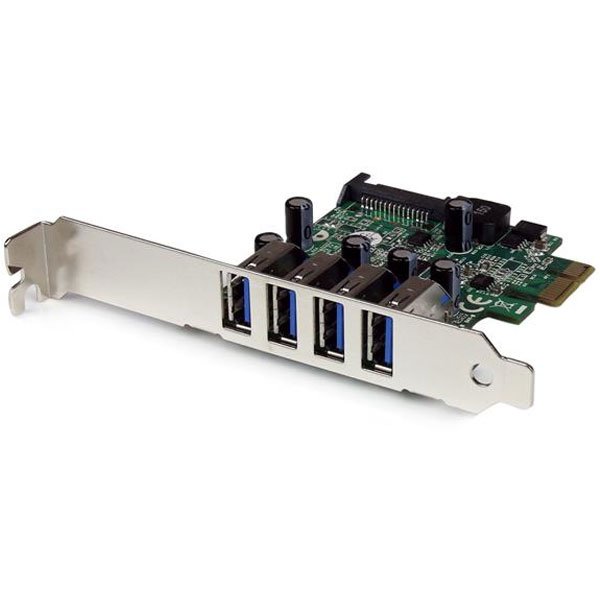

StarTech 4 Port PCI Express PCIe USB 3.0 Card
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
2 Years |
Physical Characteristics |
|
Product Height |
2.7 in [68 mm] |
Product Length |
3 in [75 mm] |
Product Weight |
1.6 oz [45 g] |
Product Width |
0.7 in [19 mm] |
Hardware |
|
Bus Type |
PCI Express |
Card Type |
Standard Profile (LP bracket incl.) |
Chipset ID |
NEC uPD720201 |
Interface |
USB 3.0 |
Port Style |
Integrated on Card |
Ports |
4 |
Performance |
|
Type and Rate |
USB 3.0 - 5 Gbit/s |
UASP Support |
Yes |
Connector(s) |
|
Connector Type(s) |
1 - PCI Express x1 Male |
External Ports |
4 - USB 3.0 A (9 pin; SuperSpeed) Female |
Internal Ports |
1 - SATA Power (15 pin) Plug |
Software |
|
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003 |
Special Notes / Requirements |
|
Note |
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
System and Cable Requirements |
Available PCI Express expansion slot |
Environmental |
|
Humidity |
20% ~ 80% RH |
Operating Temperature |
5°C to 50°C (41°F to 122°F) |
Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
Packaging Information |
|
Package Quantity |
1 |
Shipping (Package) Weight |
0.2 lb [0.1 kg] |
What's in the Box |
|
Included in Package |
1 - PCI Express USB 3.0 Card |
|
1 - Low Profile Bracket |
|
1 - Driver CD |
|
1 - Instruction Manual |
Brand | StarTech |
Dimension |
Product Height 2.7 in [68 mm]
Product Length 3 in [75 mm] Product Width 0.7 in [19 mm] |
Speed | Super Speed |
Interface | USB 3.0 |
Ports | 4 |
- Manufacturer Warranty
- 1 Year Return to Base Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
