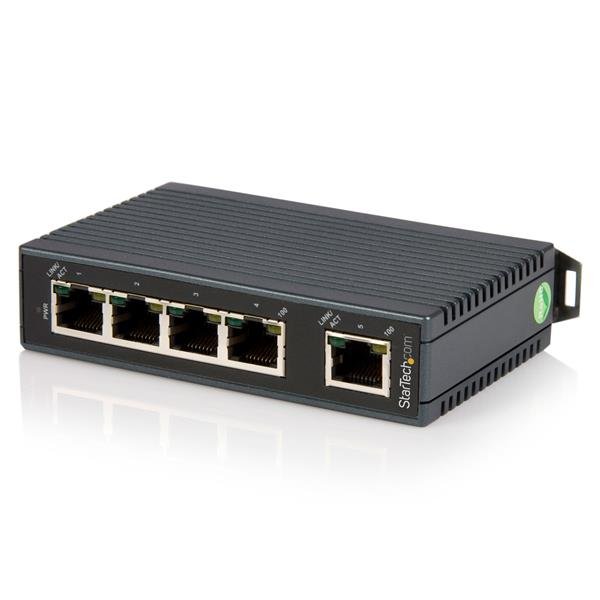

StarTech 5 Port Industrial Ethernet Switch - DIN Rail Mountable
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Features
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
- Wider range of operating temperatures, ideal for industrial environments
- IEEE 802.3az Energy-Efficient Ethernet
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.Conquer the tough demands of industrial environments
Get up and running in no time
Reduce your energy costs with Energy-Efficient Ethernet
Connector(s) External Ports RJ-45 Female Terminal Block (3 Wire) Environmental Humidity 5~95% RH (Non-Condensing) Operating Temperature -10°C to 60°C (14°F to 140°F) Storage Temperature -25°C to 85°C (-13°F to 185°F) Hardware Industry Standards IEEE 802.1P Quality of Service (QoS) IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) IEEE 802.3az (Energy-Efficient Ethernet) Interface RJ45 (10/100 Ethernet) Ports 5 Regulatory Approvals EN61000-6-2
EN61000-6-4
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock) Indicators LED Indicators Activity (100 Mbps) Link/Activity Power Packaging Information Shipping (Package) Weight 335 g [11.8 oz] Performance Auto MDIX Yes Auto-Negotiation Yes Buffer Size 56 KB Compatible Networks 10/100 Mbps Flow Control IEEE 802.3x Full-Duplex Full Duplex Support Yes Jumbo Frame Support No Maximum Cable Length 100 m [328 ft] Maximum Data Transfer Rate 200 Mbps (Full-Duplex) MTBF 1,179,133 Hours Surge Protection ESD: EN61000-4-2
Surge: EN61000-4-5 Switching Architecture Store-and-Forward Physical Characteristics Color Black Enclosure Type Plastic Product Height 110 mm [4.3 in] Product Length 70 mm [2.8 in] Product Weight 148 g [5.2 oz] Product Width 25 mm [1 in] Power Input Voltage 12 ~ 48 DC Power Consumption 2.12W Max Power Source Terminal Block Software OS Compatibility OS Independent; No additional drivers or software required What's in the Box Included in Package 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket) Instruction Manual CD Terminal Block
Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
