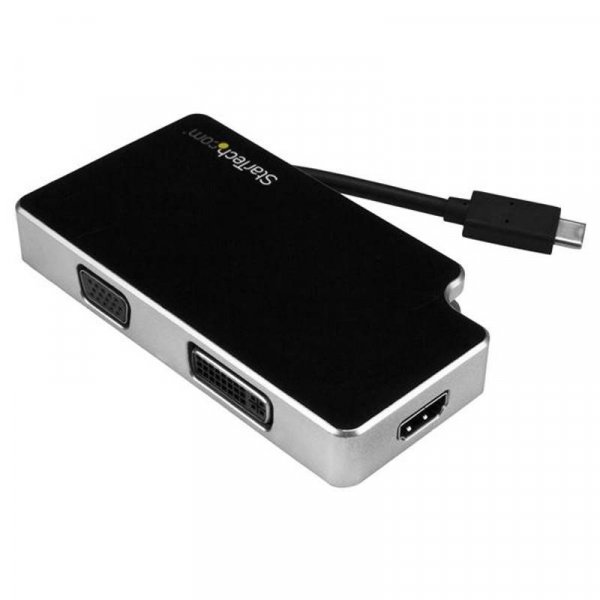

Startech Cdpvgdvhdb 3-in-1 Usb-c To Vga Dvi Or Hdmi
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
OVERVIEW
This 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI® display.
The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.
Stylish connectivity for your USB-C laptop
This travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS™, MacBook and any device that supports USB-C DP alt mode.
All-in-one video connectivity, with travel in mind
Instead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.
With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.
Innovative, built-in cable manager
The adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you’re traveling to ensure the adapter is neatly stored in your travel bag.
Astonishing picture quality
The HDMI output on this travel adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support high-definition maximum resolutions of up to 1920 x 1200, so you can still enjoy excellent video quality.
The travel adapter is compatible with USB Type-C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.
The CDPVGDVHDB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
macOS 10.12.6 or later is required for your MacBook to support this product.
Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery.
Applications
Carry the adapter with you when you travel, and connect to almost any display.
Connect your BYOD Dell XPS, Chromebook Pixel, MacBook or other USB-C laptop or tablet to a provided VGA, DVI or HDMI display at work
Connect a VGA, DVI or HDMI monitor to your USB-C laptop, to use as a secondary monitor.
TECHNICAL SPECIFICATIONS:
Hardware | |
Active or Passive Adapter | Active |
Adapter Style | Adapters |
Chipset ID | Cypress - CYPD2120-24LQXIT Cypress - CY7C65217 Analogix - ANX9847FN-AA-R MegaChips - MCDP2850-BC |
Converter Type | Travel A/V Adapters |
Output Signal | HDMI |
VGA | |
DVI-D (DVI Digital) | |
Performance | |
Audio Specifications | HDMI output - 7.1 surround sound |
General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
Maximum Digital Resolutions | 3840 x 2160 @ 30Hz |
Supported Resolutions |
HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 .DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
Video Revision | DisplayPort 1.2 |
Wide Screen Supported | Yes |
Connector(s) | |
Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input |
Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output |
1 - DVI-I (29 pin) Female Output | |
1 - HDMI (19 pin) Female Output | |
Special Notes / Requirements | |
Note | macOS 10.12.6 or later is required for your MacBook to support this product. |
Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery. | |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature
|
5°C to 35°C (41°F to 95°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Physical Characteristics | |
Accent Color | Black |
Cable Length | 3.5 in [90 mm] |
Color | Black |
Enclosure Type | Aluminum |
Product Height | 0.7 in [18 mm] |
Product Length | 4.3 in [110 mm] |
Product Width | 2.4 in [60 mm] |
Product Weight | 2.4 oz [67 g] |
Packaging Information | |
Shipping (Package) Weight |
0.4 lb [0.2 kg] |
What's in the Box | |
Included in Package | 1 - USB-C travel adapter |
Warranty Information | |
Warranty | 2 Years |
*Product appearance and specifications are subject to change without notice.
Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
