StarTech Cisco Compatible Gigabit Fiber SFP Module SM/MM LC - 10km
Overview
Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC 10km (Mini-GBIC) - 1310nm 1000Base-LH Single Mode Fiber SFP Module

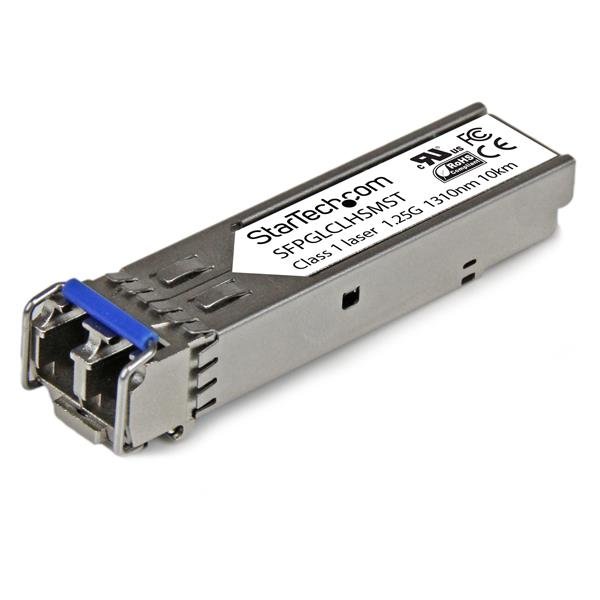

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Features
- Data rates up to 1.25 Gbps
- Supports single-mode (10km/6.2 mi.) and multi-mode (1.5km/.9mi.)
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter. Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot. This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products. Backed by a StarTech.com lifetime warranty and free lifetime technical support.Connector(s) Local Unit Connectors Fiber Optic LC Duplex Female Environmental Humidity 30~70% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -40°C to 85°C (-40°F to 85°F) Hardware Industry Standards IEEE 802.3z 1000BASE-LX/LH WDM No Packaging Information Shipping (Package) Weight 45 g [1.6 oz] Performance Compatible Networks 1000 Mbps (1 Gbps) DDM No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Single Mode Max Transfer Distance 10 km (6.2 mi) Maximum Data Transfer Rate 1.25 Gbps Wavelength 1310nm Physical Characteristics Product Height 10 mm [0.4 in] Product Length 60 mm [2.4 in] Product Weight 18 g [0.6 oz] Product Width 12 mm [0.5 in] Special Notes / Requirements Note For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port What's in the Box Included in Package 1.25 Gbps Single Mode LC SFP
| Brand | StarTech |
