Buy StarTech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

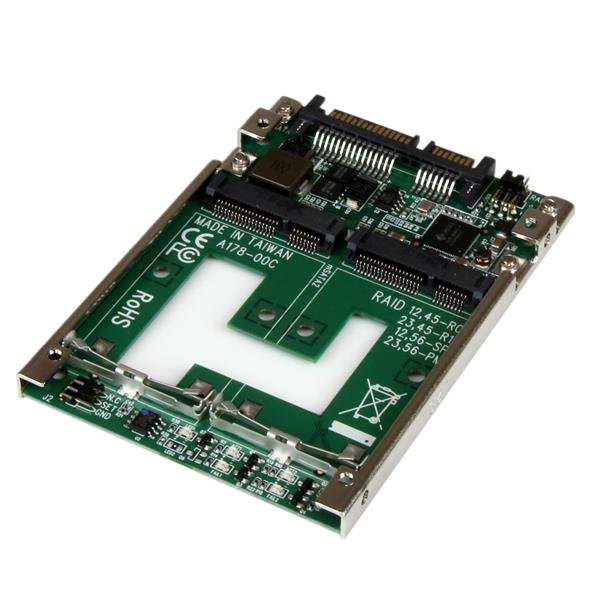

StarTech Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

Delivery

SOLD OUT

Click here for ETA

no surcharge fee

Paypal/MasterCard/Visa/Amex

$85

Startech 25sat22msat Dual Msata Ssd To 2.5 Sata Raid AdapterFeaturesDual full size mSATA SSD baysSupports RAID0, RAID1, JBOD, BIGOpen-frame steel mounting bracket2.5in SATA form factor housingCompatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives and controllersVastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter. Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives. You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another. Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation. The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.Connector(s)Drive ConnectorsmSATA (52 pin, Mini SATA) Receptacle Host ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle EnvironmentalOperating Temperature-40Â°C to 85Â°C (-40Â°F to 185Â°F) HardwareChipset IDJMicron JMS562 Compatible Drive Types (Type and Rate)mSATA (Mini SATA) Drive InstallationFixed InterfaceSATA Number of Drives2 IndicatorsLED IndicatorsDrive #1 Activity Drive #1 Failure Drive #2 Activity Drive #2 Failure Packaging InformationShipping (Package) Weight108 g [3.8 oz] PerformanceHot Swap CapabilityNo Maximum Data Transfer Rate6 Gbps MTBF5,101,299 Hours Port MultiplierYes RAIDYes Supported RAID ModesBIG (Spanning or Concatenation) JBOD - (Just a Bunch of Disks) RAID 0 (Striped Disks) RAID 1 (Mirrored Disks) Type and RateSATA III (6 Gbps) Physical CharacteristicsProduct Height7 mm [0.3 in] Product Length97 mm [3.8 in] Product Weight39 g [1.4 oz] Product Width70 mm [2.8 in] SoftwareOS CompatibilityOS independent; No software or drivers required What\'s in the BoxIncluded in PackageDual mSATA to 2.5in SATA Adapter Install Guide Mounting screw kit

85 85 AUD 100

SKU

25SAT22MSAT

SKU#: 25SAT22MSAT / ITEM NO: 611978 / BRAND: Startech

$85.00

Shipping Calculator:

Dual mSATA SSD to 2.5SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing - Dual mSATA SSD RAID Controller to SATA Adapter

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details

Customer Also Bought

Customer Also Viewed

Startech 25sat22msat Dual Msata Ssd To 2.5 Sata Raid Adapter

Features

Dual full size mSATA SSD bays
Supports RAID0, RAID1, JBOD, BIG
Open-frame steel mounting bracket
2.5in SATA form factor housing
Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives and controllers

Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.

The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.

Connector(s)
Drive Connectors	mSATA (52 pin, Mini SATA) Receptacle
Host Connectors	SATA Data & Power Combo (7+15 pin) Receptacle
Environmental
Operating Temperature	-40Â°C to 85Â°C (-40Â°F to 185Â°F)
Hardware
Chipset ID	JMicron JMS562
Compatible Drive Types (Type and Rate)	mSATA (Mini SATA)
Drive Installation	Fixed
Interface	SATA
Number of Drives	2
Indicators
LED Indicators	Drive #1 Activity
	Drive #1 Failure
	Drive #2 Activity
	Drive #2 Failure
Packaging Information
Shipping (Package) Weight	108 g [3.8 oz]
Performance
Hot Swap Capability	No
Maximum Data Transfer Rate	6 Gbps
MTBF	5,101,299 Hours
Port Multiplier	Yes
RAID	Yes
Supported RAID Modes	BIG (Spanning or Concatenation)
	JBOD - (Just a Bunch of Disks)
	RAID 0 (Striped Disks)
	RAID 1 (Mirrored Disks)
Type and Rate	SATA III (6 Gbps)
Physical Characteristics
Product Height	7 mm [0.3 in]
Product Length	97 mm [3.8 in]
Product Weight	39 g [1.4 oz]
Product Width	70 mm [2.8 in]
Software
OS Compatibility	OS independent; No software or drivers required
What's in the Box
Included in Package	Dual mSATA to 2.5in SATA Adapter
	Install Guide
	Mounting screw kit

Brand

StarTech

Manufacturer Warranty: 2 Years Limited Warranty
Manufacturer Contact Info: http://www.StarTech.com.au
