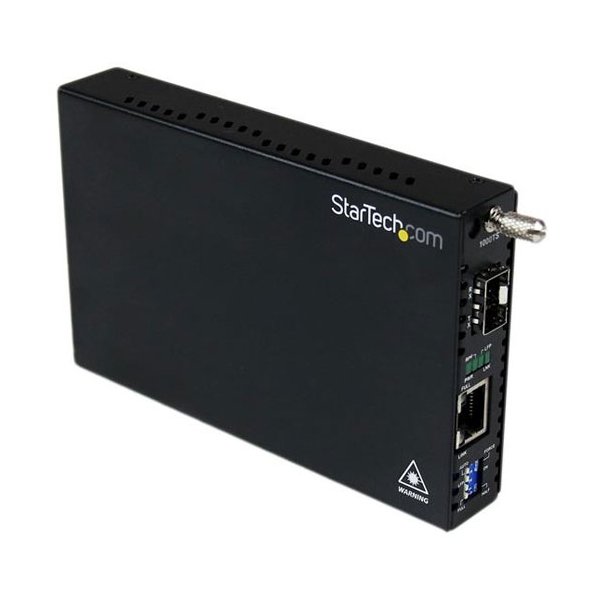

StarTech Gigabit Fiber Media Converter - Open SFP
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of Gigabit transceivers for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
2 Years |
Physical Characteristics |
|
Color |
Black |
Enclosure Type |
Steel |
Product Height |
0.9 in [23 mm] |
Product Length |
6.1 in [154 mm] |
Product Weight |
14 oz [396 g] |
Product Width |
3.5 in [88 mm] |
Hardware |
|
Chipset ID |
Marvell - 88E1111 |
Industry Standards |
IEEE 802.3ab 1000BASE-T |
|
IEEE 802.3u 100BASE-LX |
|
IEEE 802.3z 1000BASE-SX |
PoE |
No |
WDM |
No |
Performance |
|
Auto MDIX |
Yes |
Fiber Operating Mode |
Half/Full-Duplex |
Maximum Data Transfer Rate |
1.25 Gbps |
MTBF |
65, 000 Hours |
Connector(s) |
|
Local Unit Connectors |
1 - RJ-45 Female |
|
1 - SFP Slot Female |
Special Notes / Requirements |
|
Note |
Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
Power |
|
Center Tip Polarity |
Positive |
Input Current |
0.36 A |
Input Voltage |
100 ~ 240 AC |
Output Current |
1 A |
Output Voltage |
12 DC |
Plug Type |
M |
Power Consumption |
< 8W |
Power Source |
AC Adapter Included |
Environmental |
|
Humidity |
10~90% RH (Non-Condensing) |
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Packaging Information |
|
Shipping (Package) Weight |
1.7 lb [0.8 kg] |
What's in the Box |
|
Included in Package |
1 - Fiber Media Converter |
|
1 - Universal Power Adapter (NA/UK/EU) or AU in Australia |
|
1 - Instruction Manual |
Brand | StarTech |
Data Rates | 1.25 Gbps |
Interface | 1-RJ-45 Female |
Network Media |
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-LX IEEE 802.3z 1000BASE-SX |
Transfer Rate / Type | 1 Gbps |
