Startech Hsb220sat25b 2 Drive 2.5in Trayless Sata Mobile Rack
Delivery
Overview

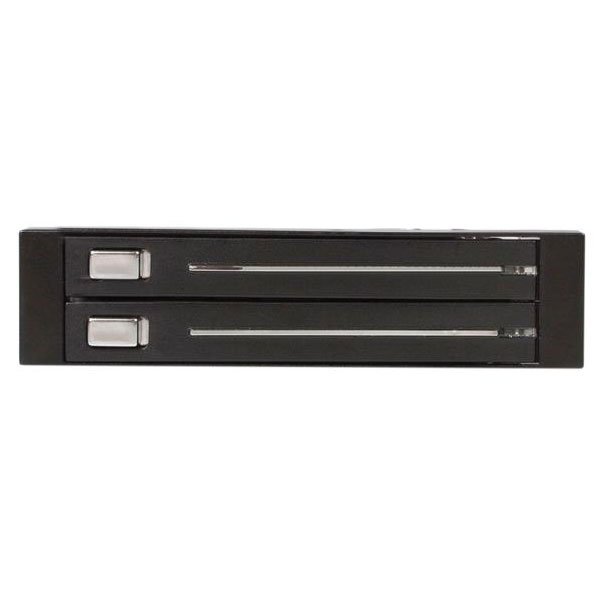

2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Dual Drive SATA Mobile Rack Enclosure for 3.5 HDD
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Type |
Aluminum |
|
Max Drive Height |
0.4 in [9.5 mm] |
|
Product Height |
0.9 in [24 mm] |
|
Product Length |
5.3 in [134 mm] |
|
Product Weight |
10 oz [282.5 g] |
|
Product Width |
4 in [102 mm] |
|
Hardware |
|
|
Compatible Drive Types (Type and Rate) |
SATA |
|
Drive Size |
2.5in |
|
Key Lock |
No |
|
Number of Drives |
2 |
|
Performance |
|
|
Hot Swap Capability |
Yes |
|
Max Drive Capacity |
Tested up to 500GB per drive |
|
Type and Rate |
SATA III (6 Gbps) |
|
Connector(s) |
|
|
Connector Type(s) |
2 - SATA (7 pin; Data) Receptacle |
|
|
2 - SATA Power (15 pin) Receptacle |
|
|
2 - SP4 (4 pin; Small Drive Power) Male |
|
Drive Connectors |
2 - SATA (7 pin; Data) Receptacle |
|
|
2 - SATA Power (15 pin) Receptacle |
|
Host Connectors |
2 - SATA (7 pin; Data) Plug |
|
|
2 - SATA Power (15 pin) Plug |
|
Indicators |
|
|
LED Indicators |
1 - Power/Drive Activity |
|
Packaging Information |
|
|
Shipping (Package) Weight |
1.1 lb [0.5 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - Dual SATA Hot-Swap Bay |
|
|
2 - LP4-to-4-pin LED/15-pin SATA Power Y-cable |
|
|
2 - SATA Cable |
|
|
2 - Hard Drive Protector Film |
|
|
1 - Screw Kit |
|
|
1 - Instruction Manual |
| Brand | StarTech |
| Colour | Black |
| Supported HDD | 2.5" SATA III |
| Dimension |
Height: 24 mm Length: 134 mm Width: 102 mm |
| Material | Aluminum |
| Bay requirement | 1x 3.5" bay |
