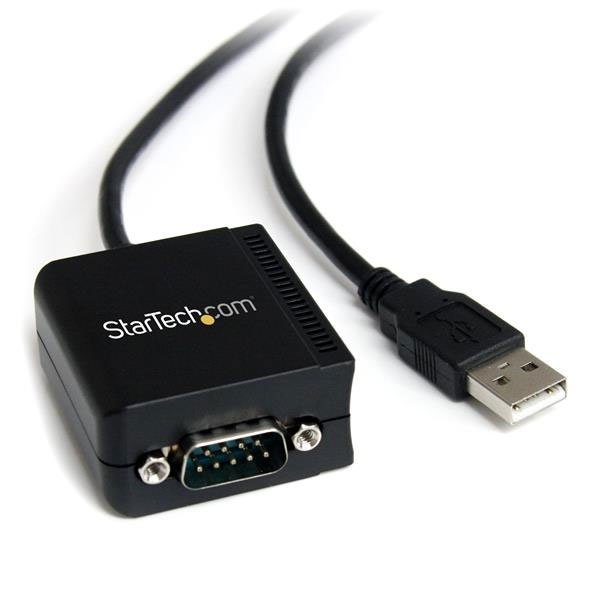

Startech Icusb2321fis Usb To Serial Adapter Cable W/ Isolation
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.
The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
1-year warranty and free lifetime technical support.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
2 Years |
Physical Characteristics |
|
Cable Length |
8 ft [2.4 m] |
Color |
Black |
Enclosure Type |
Plastic |
Product Height |
0.8 in [20 mm] |
Product Length |
8 ft [2.4 m] |
Product Weight |
3 oz [86 g] |
Product Width |
1.6 in [40 mm] |
Hardware |
|
Bus Type |
USB 2.0 |
Chipset ID |
FTDI - FT232RL |
Interface |
Serial |
Port Style |
Cable Adapter |
Ports |
1 |
Performance |
|
Data Bits |
7, 8 |
FIFO |
256 Bytes |
Isolation |
2500 Vrms |
Max Baud Rate |
921.6 Kbps |
Parity |
None, Odd, Even, Mark, Space |
Serial Protocol |
RS-232 |
Stop Bits |
1, 2 |
Supported Protocols |
RS 232 |
Surge Protection |
500W Bi-directional circuits |
Connector(s) |
|
Connector Type(s) |
1 - DB-9 (9 pin; D-Sub) Male |
|
1 - USB A (4 pin) Male |
Software |
|
Microsoft WHQL Certified |
Yes |
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server 2012, 2008 R2, 2003 Mac OS 10.x (tested up to 10.10) Linux 2.4.x / 2.6.x |
Special Notes / Requirements |
|
System and Cable Requirements |
One available USB 1.1 (or better) port |
Power |
|
Power Source |
USB-Powered |
Environmental |
|
Humidity |
5~95% RH |
Operating Temperature |
0°C to 55°C (32°F to 131°F) |
Storage Temperature |
-20°C to 85°C (-4°F to 185°F) |
Packaging Information |
|
Shipping (Package) Weight |
0.4 lb [0.2 kg] |
What's in the Box |
|
Included in Package |
1 - USB to RS-232 Serial Adapter |
|
1 - Driver CD |
|
1 - Instruction Manual |
Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
