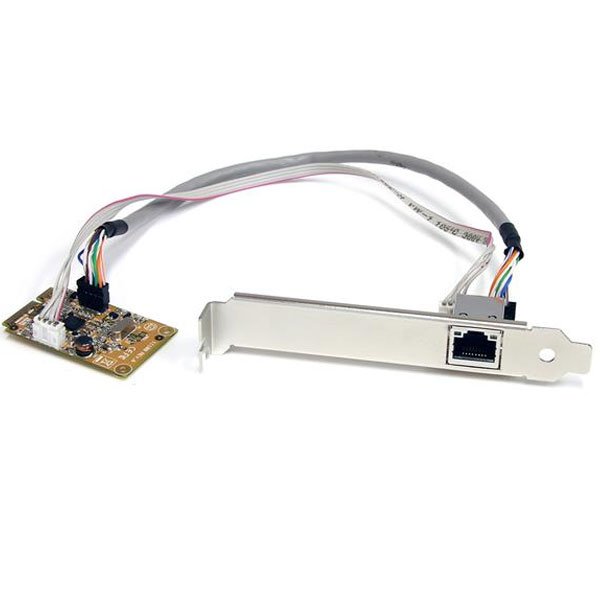

StarTech Mini PCIe Gigabit Network Adapter Card
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
2 Years |
Physical Characteristics |
|
Product Height |
0.3 in [8 mm] |
Product Length |
2 in [51 mm] |
Product Weight |
0.2 oz [6 g] |
Product Width |
1.2 in [30 mm] |
Hardware |
|
Bus Type |
Mini PCI Express |
Card Type |
Embedded |
Chipset ID |
Realtek - RTL8111E |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Interface |
RJ45 (Gigabit Ethernet) |
Ports |
1 |
Performance |
|
Auto MDIX |
Yes |
Compatible Networks |
10/100/1000 Mbps |
Full Duplex Support |
Yes |
MTBF |
482765 Hours |
Connector(s) |
|
Connector Type(s) |
1 - Mini PCI Express x1 (52 pin) Male |
External Ports |
1 - RJ-45 Female |
Software |
|
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server 2012, 2008 R2, 2003(32/64) Mac OS 10.4.x and 10.5.x Unix and Linux |
Special Notes / Requirements |
|
System and Cable Requirements |
Available mini PCI Express slot and expansion card slot |
Indicators |
|
LED Indicators |
1 - Activity |
|
1 - Link |
Environmental |
|
Humidity |
5% ~ 95% RH |
Operating Temperature |
0°C to 55°C (32°F to 131°F) |
Storage Temperature |
-20°C to 85°C (-4°F to 185°F) |
Packaging Information |
|
Package Quantity |
1 |
Shipping (Package) Weight |
5.3 oz [150 g] |
What's in the Box |
|
Included in Package |
1 - Mini PCIe Card |
|
1 - RJ45 Daughter Board |
|
1 - Low Profile Bracket |
|
1 - Driver CD |
|
1 - Instruction Manual |
Brand | StarTech |
Package Contents |
1 - Mini PCIe Card 1 - RJ45 Daughter Board 1 - Low Profile Bracket 1 - Driver CD 1 - Instruction Manual |
LED Indicator |
1 - Activity 1 - Link |
Data Rates | 10/100/1000 |
Interface |
RJ45 (Gigabit Ethernet) Mini PCIe |
System Requirements |
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10.4.x and 10.5.x Unix and Linux |
Network Media | 10/100/1000 Mbps |
