Buy StarTech PCIe GbE Fiber Network Card - Open SFP PEX1000SFP2

StarTech PCIe GbE Fiber Network Card - Open SFP PEX1000SFP2

Delivery

In Stock
Usually ships within 24-48 hours
no surcharge fee
Paypal/MasterCard/Visa/Amex
$334
Startech Pex1000sfp2 Pcie Gbe Fiber Network Card W/ Open SfpProduct Overview The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice. This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network. With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups. Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Product Specifications Warranty Information Warranty 2 Years Physical Characteristics Product Height 4.6 in [118 mm] Product Length 5 in [128 mm] Product Weight 2 oz [57 g] Product Width 0.7 in [18 mm] Hardware Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8168E  Marvell - 88E1111B1 Industry Standards IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 Interface Fiber Ethernet Ports 1 Performance Auto MDIX Yes Buffer Size 48 KB Compatible Networks 1000 Mbps (1 Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 2000 Mbps (2 Gbps) - Full-Duplex Connector(s) Connector Type(s) 1 - PCI Express x1 Male External Ports 1 - SFP Slot Female Software OS Compatibility Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003 Mac OS 10.5 and up (Tested up to 10.9) Linux 2.4.x / 2.6.x / 3.5.0 Microsoft Hyper-V Special Notes / Requirements Note Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) System and Cable Requirements Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required Indicators LED Indicators 1 - Link (Green)   1 - Activity (Yellow) Power Power Consumption 3.2W Max Environmental Humidity 5~95% RH (Non-Condensing) Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Packaging Information Shipping (Package) Weight 7.1 oz [200 g] What's in the Box Included in Package 1 - 1 Port PCI Express Gigabit SFP Network Card   1 - Low-Profile Bracket   1 - Driver CD   1 - Instruction Manual
334 334 AUD 100
SKU
PEX1000SFP2
SKU#: PEX1000SFP2 / ITEM NO: 570479 / BRAND: Startech
$334.00
Shipping Calculator:
Loading...
PCI Express Gigabit Ethernet Fiber Network Card w/ Open SFP - PCIe GbE SFP Network Card Adapter NIC - Fiber Optic SFP Adapter - PCI Express SFP Card - Fiber Card w/ Open SFP Slot

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details

Startech Pex1000sfp2 Pcie Gbe Fiber Network Card W/ Open Sfp

Product Overview

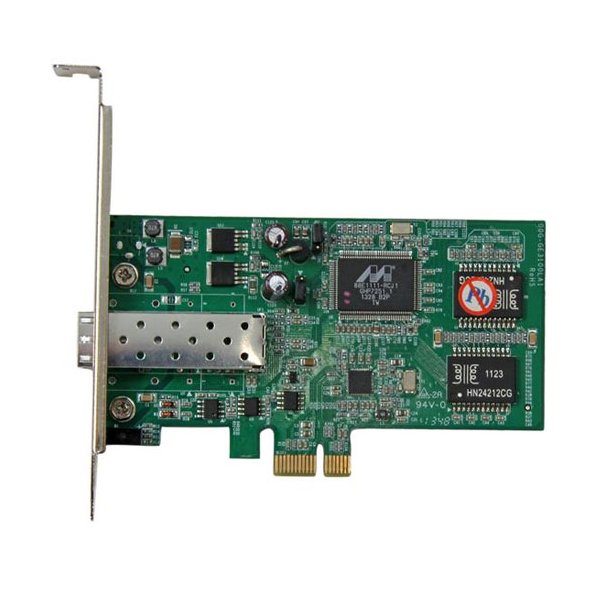

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.

This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.

With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Specifications

Warranty Information

Warranty

2 Years

Physical Characteristics

Product Height

4.6 in [118 mm]

Product Length

5 in [128 mm]

Product Weight

2 oz [57 g]

Product Width

0.7 in [18 mm]

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

Realtek - RTL8168E  Marvell - 88E1111B1

Industry Standards

IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1

Interface

Fiber Ethernet

Ports

1

Performance

Auto MDIX

Yes

Buffer Size

48 KB

Compatible Networks

1000 Mbps (1 Gbps)

Full Duplex Support

Yes

Maximum Data Transfer Rate

2000 Mbps (2 Gbps) - Full-Duplex

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

External Ports

1 - SFP Slot Female

Software

OS Compatibility

Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003 Mac OS 10.5 and up (Tested up to 10.9) Linux 2.4.x / 2.6.x / 3.5.0 Microsoft Hyper-V

Special Notes / Requirements

Note

Fiber data transfer speeds and distances are dependent on the SFP used (sold separately)

System and Cable Requirements

Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required

Indicators

LED Indicators

1 - Link (Green)



1 - Activity (Yellow)

Power

Power Consumption

3.2W Max

Environmental

Humidity

5~95% RH (Non-Condensing)

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Packaging Information

Shipping (Package) Weight

7.1 oz [200 g]

What's in the Box

Included in Package

1 - 1 Port PCI Express Gigabit SFP Network Card



1 - Low-Profile Bracket



1 - Driver CD



1 - Instruction Manual



Brand StarTech
Standards and Protocols IEEE802.3z 1000BASE-SX/LX
IEEE 802.1Q VLAN tagging
IEEE 802.1P Layer 2 Priority Encoding
IEEE 802.3x full duplex flow control
RFC 1157 SNMP v1
Package Contents 1x 1 Port PCI Express Gigabit SFP Network Card
1x Low-Profile Bracket
1x Driver CD
1x Instruction Manual
Interface Fiber Ethernet
System Requirements Gigabit SFP transceiver required
Not compatible with 100Mbps SFP transceivers
LED Indicator 1 - Link (Green)
1 - Activity (Yellow)
Network Media 1000 Mbps (1 Gbps)
Data Rates 2000 Mbps (2 Gbps)
Manufacturer Warranty
2 Years Manufacturer Warranty
