Startech Rk419wallv 4u 19in Vertical Wall Mount Rack Bracket
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview

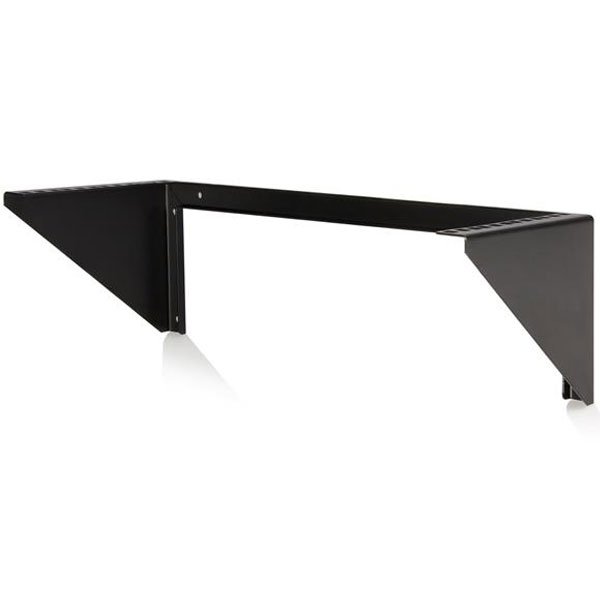

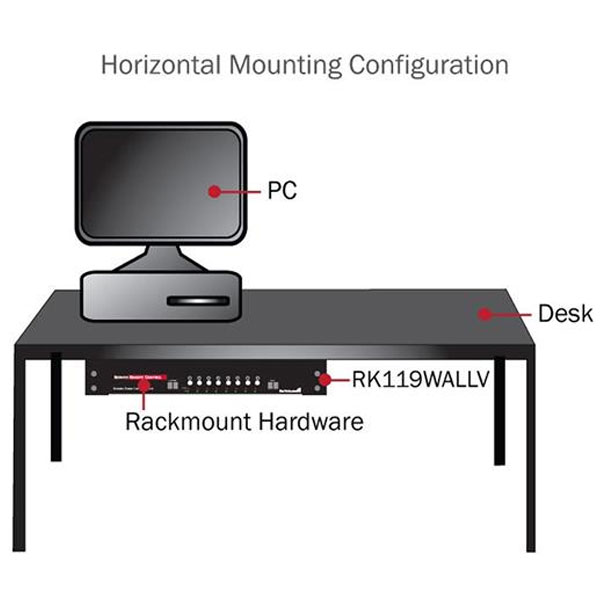

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by Lifetime Warranty.
1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
Lifetime |
Physical Characteristics |
|
Color |
Black |
External Depth |
7.6 in [193.5 mm] |
External Height |
5.9 in [151 mm] |
External Width |
19.8 in [504 mm] |
Internal Width |
17.7 in [450 mm] |
Product Weight |
37.4 oz [1060 g] |
Hardware |
|
Fan(s) |
No |
Frame Type |
Open Frame |
Front Door Type |
Open |
Industry Standards |
EIA RS310-C |
Rack Type |
2-Post |
U Height |
4U |
Wallmountable |
Yes |
Performance |
|
Weight Capacity |
125.3 lb [56.7 kg] |
Special Notes / Requirements |
|
Note |
Package includes 1½” screws for mounting to wood surfaces, additional hardware will be required for other materials |
Packaging Information |
|
Flat Pack |
No |
Shipping (Package) Weight |
2.5 lb [1.1 kg] |
What's in the Box |
|
Included in Package |
1 - Vertical Wall Mount Bracket |
|
16 - Cage nuts and screws (16 Each) |
|
6 - Self Tapping Wood Screws - 3/16" x 1 1/2" |
Brand | StarTech |
- Manufacturer Warranty
- Limited Product Lifetime Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
