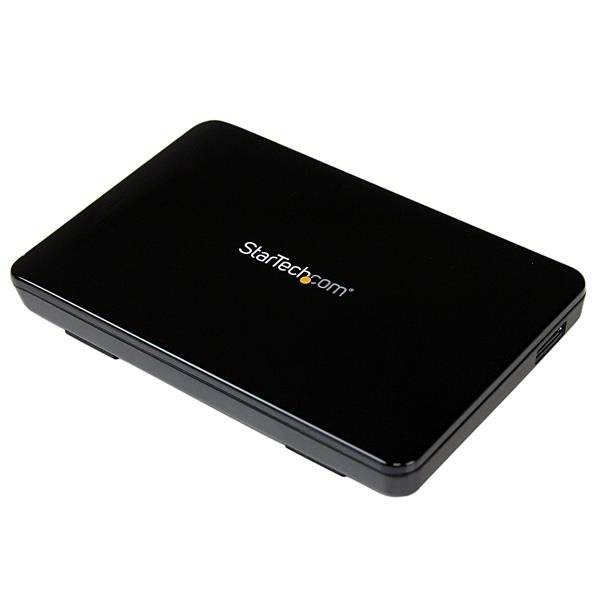

Startech S2510bpu33 2.5 Usb 3 Sata Ssd / Hdd Uasp Enclosure
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Startech S2510bpu33 2.5 Usb 3 Sata Ssd / Hdd Uasp Enclosure
Features
Compliant with USB Attached SCSI Protocol (UASP) Transport Specifications
Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
Tool-less installation
Powered directly from the USB port
Compatible with USB revision 3.0/2.0/1.1 (5 Gbps/480 Mbps/1.5 Mbps)
The S2510BPU33 USB 3.0 Hard Drive Enclosure with UASP lets you connect a 2.5in SATA III hard drive (HDD) or solid state drive (SSD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well.
Enhanced with UASP (USB Attached SCSI Protocol), this 2.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
With support for SATA I/II/III, and large capacity drives (tested up to 1TB) this HDD enclosure is compatible with virtually any 2.5in SATA hard drive, and greatly increases the storage/backup capabilities of your computer.
For added portability the USB 3.0/SATA III enclosure features tool-less HDD installation, and requires no external power adapter.
To ensure compatibility with your computer system, the S2510BPU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
Connector(s)
Drive Connectors SATA Data & Power Combo (7+15 pin)
Host Connectors USB 3.0 Micro-B (10 pin, SuperSpeed)
Environmental
Humidity Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH
Hardware
Chipset ID ASMedia - ASM1053
Compatible Drive Types (Type and Rate) SATA
Drive Installation Fixed
Drive Size 2.5in
Fan(s) No
Interface USB 3.0
Number of Drives 1
Indicators
LED Indicators Power & Activity
Packaging Information
Shipping (Package) Weight 0.2 kg [0.4 lb]
Performance
Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives
RAID No
Type and Rate SATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP Support Yes
Physical Characteristics
Color Black
Enclosure Type Plastic
Max Drive Height 9.5 mm [0.4 in]
Product Height 15 mm [0.6 in]
Product Length 131.9 mm [5.2 in]
Product Weight 70.1 g [2.5 oz]
Product Width 88 mm [3.5 in]
Power
Power Source USB-Powered
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements Available USB port
What's in the Box
Included in Package 18" USB 3.0 Cable
2.5" USB 3.0 to SATA III HDD Enclosure
HDD Pad
Product Manual
Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
