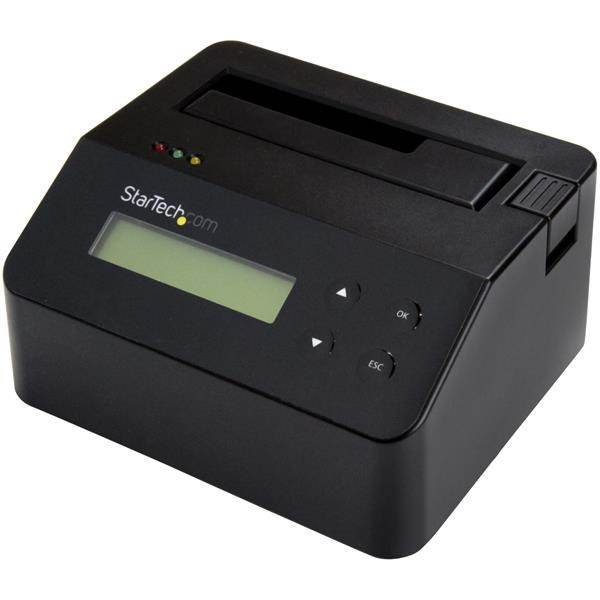

Startech SDOCK1EU3P2 Sata Drive Eraser And Dock - 4kn Support
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Overview
Make the most of your SATA drives. This standalone hard drive eraser makes it easy to re-use or re-purpose your 2.5” and 3.5” solid-state drives or hard drives, without connecting to a host computer. It works with most SATA SSDs and HDDs, including 4Kn drives, and offers printed confirmation when your drives have been securely erased.
The SSD/HDD eraser also gives you a single-bay dock for your SATA drive with fast USB 3.0 performance, also known as USB 3.1 Gen 1 (5Gbps).
Industry-recognized erase modes Using industry-recognized erase modes, you can rest assured that the standalone eraser securely cleans, erases or sanitizes the data from your 2.5” or 3.5” SSD or HDD.
The hard drive eraser supports nine erase modes including Quick Erase, Single and Multi-pass Overwrites, Custom Erase, Secure Erase and Enhanced Secure Erase. The Multi-pass Overwrite (3-Pass Full Disk Overwrite) erase procedures meet the requirements of DoD (5220.22-M) standards.
Wipe sensitive data securely, confirmed with a printed receipt The hard drive eraser lets you connect to an RS232 serial printer to print a record of the erase procedure and confirm that the erase has been successfully completed. This feature is ideal for IT technicians, system administrators or any departments needing confirmation when erasing sensitive or confidential information. For your reference, the printed receipt clearly shows you the time and date the drive was erased, as well as the erase mode used.
Easy drive management and wide compatibility For IT technicians or business professionals who need to check files or test different hard drives, the dock makes it easy to hot-swap drives in and out as needed. It features a single SATA bay with a top-loading design for easy access to your drives, which makes it easy to quickly back-up or transfer data to a hard drive or solid-state drive.
With support for SATA I, II, and III and large-capacity drives, including 4Kn drives, this docking station is compatible with virtually any 2.5” or 3.5” SATA SSD or HDD.
Hassle-free setup and a compact design The hard drive eraser is OS independent, which ensures a quick and easy setup. Its compact design and small footprint enables you to easily tuck it into your workspace.
Features
- Easy-to-use secure erasing with no host device required
- Supports most 2.5” and 3.5” SATA HDD and SSD drives including 4Kn drives
- Supports a serial printer (RS232) for receipt printing and erase confirmation
- Provides a single-bay dock for your SATA drive
- Fast access to files through USB 3.0 (5 Gbps)
- TAA compliant
- 9 modes of erase including: Quick and Secure Erase, Single Pass Overwrite and Multi-pass Overwrites - meets DoD (5220.22-M) standards
- Supports SATA I, II and III (up to 6 Gbps)
- Plug-and-play installation
- Supports drive hot-swapping
- Built-in LCD display and menu navigation buttons
- Power and activity LED
Specification
Warranty Information | |
Warranty | 2 Years |
Hardware | |
Bus Type | USB 3.0 |
Chipset ID | Xilinx - Spartan-6 |
Compatible Drive Types | SATA |
Drive Installation | Removable |
Drive Size | 2.5in & 3.5in |
Interface | USB 3.0 |
Number of Drives | 1 |
Performance | |
4Kn Support | Yes |
Erase Modes | Quick Erase |
1-Pass Overwrite | |
3-Pass Overwrite | |
7-Pass Overwrite | |
Custom Erase | |
Secure Erase | |
Enhanced Secure Erase | |
Hot Swap Capability | Yes |
Max Drive Capacity | Currently tested with up to 10TB 7200 RPM |
Maximum Data Transfer Rate | 5 Gbps |
MTBF | 8640 Hours |
Port Multiplier | No |
S.M.A.R.T. Support | Yes |
Type and Rate | USB 3.0 - 5 Gbit/s |
SATA III (6 Gbps) | |
Connector(s) | |
Drive Connectors | 2 - SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors | 1 - USB Type-B (9 pin) USB 3.0 Female |
Other Interface(s) | 1 - DB 9-pin Serial Male |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Indicators | |
LED Indicators | 1 - 2-Line LCD display on top |
1 - Power LED | |
1 - Activity LED | |
1 - HPA/DCO Detect LED | |
Power | |
Center Tip Polarity | Positive |
Input Current | 1.4 A |
Input Voltage | 110V-240V AC |
Output Current | 5:00 AM |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 60 |
Power Source | AC Adapter Included |
Environmental | |
Humidity | 10% ~ 90% RH |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -10°C to 65°C (14°F to 149°F) |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel and Plastic |
Product Height | 2.8 in [70 mm] |
Product Length | 5.5 in [140 mm] |
Product Weight | 23.2 oz [656 g] |
Product Width | 4.8 in [123 mm] |
Packaging Information | |
Shipping (Package) Weight | 4.5 lb [2.1 kg] |
What's in the Box | |
Included in Package | 1 - drive eraser and dock |
1 - USB 3.0 cable | |
1 - universal power adapter (NA/JP, UK, EU, ANZ) |
