Buy Startech St1000spexi 1-port Gigabit Ethernet Network Card

Startech St1000spexi 1-port Gigabit Ethernet Network Card

Delivery

In Stock
Usually ships within 24-48 hours
no surcharge fee
Paypal/MasterCard/Visa/Amex
$63
Startech St1000spexi 1-port Gigabit Ethernet Network CardFeaturesAdd a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slotIntel I210-AT chipsetPXE network bootFully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3abAuto MDIX supportBoost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution. The performance and reliability you demand in network connectivity This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.  The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. A versatile and cost-effective solution Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX. Easy installation With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.Connector(s)Connector Type(s)PCI Express x4 Male RJ-45 Female EnvironmentalHumidity20% ~ 80% RH Operating Temperature5°C to 50°C (41°F to 122°F) Storage Temperature-20°C to 60°C (-4°F to 140°F) HardwareBus TypePCI Express Card TypeStandard Profile (LP bracket incl.) Chipset IDIntel I210-AT Industry StandardsIEEE 802.1Q VLAN Tagging IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T IEEE 802.3x Full Duplex Flow Control Ports1 IndicatorsLED Indicators100/1000 Mbps Indicator Link/Activity Packaging InformationShipping (Package) Weight104 g [3.7 oz] PerformanceAuto MDIXYes Compatible Networks10/100/1000 Mbps Full Duplex SupportYes Jumbo Frame Support9K max. Maximum Data Transfer Rate2000 Mbps (full-duplex) Physical CharacteristicsColorBlack Product Height18 mm [0.7 in] Product Length120 mm [4.7 in] Product Weight35 g [1.2 oz] Product Width66 mm [2.6 in] PowerPower ConsumptionMax 0.8W SoftwareOS CompatibilityWindows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012 R2 Linux 2.4.x to 4.4.x LTS versions only Special Notes / RequirementsSystem and Cable RequirementsAvailable PCI Express expansion card slot What\'s in the BoxIncluded in Package1 Port Network Card Instruction Manual Low Profile Bracket
63 63 AUD 100
SKU
ST1000SPEXI
SKU#: ST1000SPEXI / ITEM NO: 570455 / BRAND: Startech
$63.00
Shipping Calculator:
Loading...
1-Port Gigabit Ethernet Network Card - PCI Express Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset - PXE Network Boot - PCIe Gigabit server adapter

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details

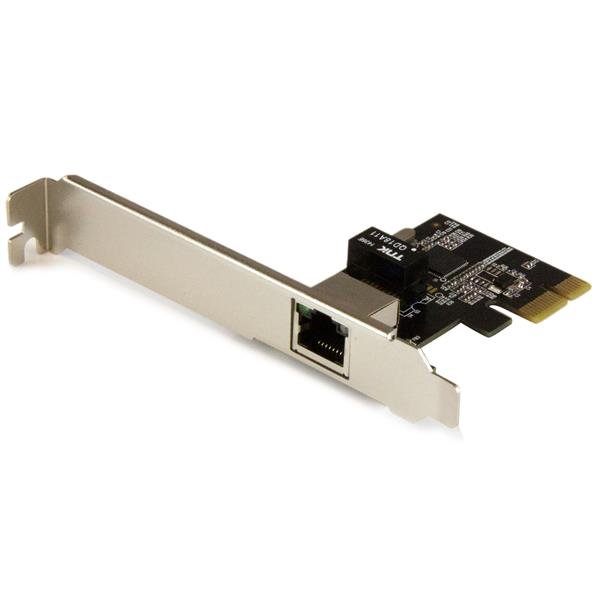

Startech St1000spexi 1-port Gigabit Ethernet Network Card

Features

  • Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot
  • Intel I210-AT chipset
  • PXE network boot
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Auto MDIX support

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.

The performance and reliability you demand in network connectivity

This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)PCI Express x4 Male
RJ-45 Female
Environmental
Humidity20% ~ 80% RH
Operating Temperature5°C to 50°C (41°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Hardware
Bus TypePCI Express
Card TypeStandard Profile (LP bracket incl.)
Chipset IDIntel I210-AT
Industry StandardsIEEE 802.1Q VLAN Tagging
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3x Full Duplex Flow Control
Ports1
Indicators
LED Indicators100/1000 Mbps Indicator
Link/Activity
Packaging Information
Shipping (Package) Weight104 g [3.7 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Jumbo Frame Support9K max.
Maximum Data Transfer Rate2000 Mbps (full-duplex)
Physical Characteristics
ColorBlack
Product Height18 mm [0.7 in]
Product Length120 mm [4.7 in]
Product Weight35 g [1.2 oz]
Product Width66 mm [2.6 in]
Power
Power ConsumptionMax 0.8W
Software
OS CompatibilityWindows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012 R2 Linux 2.4.x to 4.4.x LTS versions only
Special Notes / Requirements
System and Cable RequirementsAvailable PCI Express expansion card slot
What's in the Box
Included in Package1 Port Network Card
Instruction Manual
Low Profile Bracket

Brand StarTech
Manufacturer Warranty
2 Years Limited Warranty
