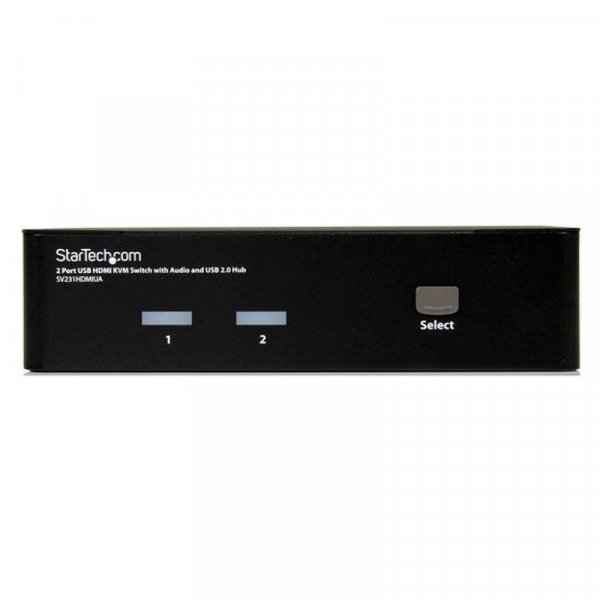

Startech Sv231hdmiua 2 Port Usb Hdmi Kvm Switch W/ Audio
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
OVERVIEW
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC.
Versatile audio support for both HDMI® audio and 3.5mm analog audio.
Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
Applications
Ideal for sharing two newer HDMI® multimedia PCs with an HDMI monitor.
Students can use a single monitor and connect their gaming console along side their PC or laptop.
Allows multimedia PCs to share peripherals and a single high definition television.
Use in the Office to connect two multimedia PCs to a single console connection increasing productivity.
TECHNICAL SPECIFICATIONS:
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | HDMI |
| Rack-Mountable | No |
| Performance | |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Console Interface(s) | 1 - HDMI (19 pin) Female |
| 2 - 3.5 mm Mini-Jack (3 Position) Female | |
| 4 - USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 2 - HDMI (19 pin) Female |
| 2 - USB B (4 pin) Female | |
| 4 - 3.5 mm Mini-Jack (3 Position) Female | |
| Software | |
| OS Compatibility | OS Independent; No additional software or drivers required |
| Indicators | |
| LED Indicators | 2 - Online/Active (Green - Connected PC is online, Red - PC is selected) |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8 A |
| Input Voltage | 110 ~ 240V AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 2.8 in [70 mm] |
| Product Height | 1.6 in [40 mm] |
| Product Width | 4.9 in [124.8 mm] |
| Product Weight | 28.2 oz [800 g] |
| Packaging Information | |
| Shipping (Package) Weight |
2.5 lb [1.1 kg] |
| What's in the Box | |
| Included in Package | 1 - 2 Port HDMI KVM |
| 1 - Package of Rubber Feet | |
| 1 - Power Adapter | |
| 1 - User Manual | |
| Warranty | 3 Years |
*Product appearance and specifications are subject to change without notice.
| Brand | StarTech |
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
