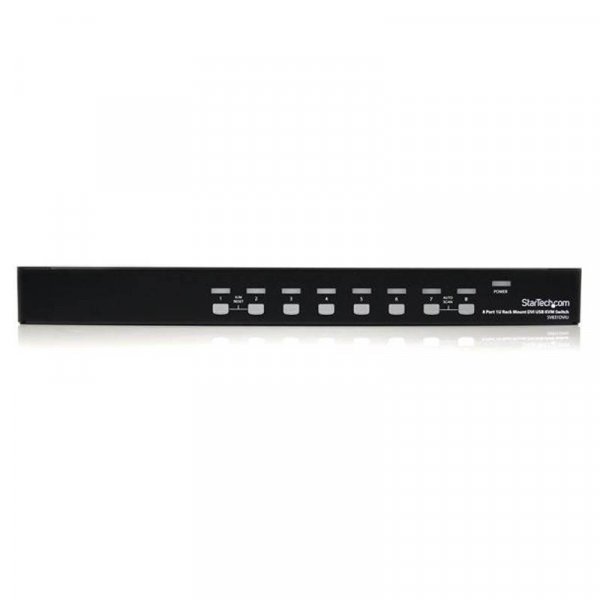

Startech Sv831dviu 8 Port 1u Rackmount Dvi Usb Kvm Switch
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
OVERVIEW
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter).
Supports wireless and combo style mouse and keyboard sets for added flexibility.
Rugged, solid steel rack-mountable case offers durability even in harsh environments.
Applications
Ideal for software development and QA test labs with multiple PCs and platforms connected to one console.
Single console administration of your co-location/ISP facility.
Create a streamlined access solution in your Datacenter or Server Farm.
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice.
Perfect for manufacturing line computer control, simplifying access to multiple systems.
TECHNICAL SPECIFICATIONS:
Hardware | |
Audio | No |
Cables Included | No |
Daisy-Chain | No |
KVM Ports | 8 |
Number of Monitors Supported | 1 |
PC Interface | USB |
PC Video Type | DVI |
Rack-Mountable | Yes |
U Height | 1U |
Performance | |
DVI Support | Yes - Single Link |
Hot-Key Selection | Yes |
IP Control | No |
Maximum Digital Resolutions | 1920 x 1200 |
Maximum Cable Length | 15 ft [4.6 m] |
Maximum Number of Users | 1 |
MTBF | 45,254 Hours |
On-Screen Display | No |
Port Selection Support | Push Button and Hotkeys |
Connector(s) | |
Console Interface(s) | 1 - DVI-I (29 pin) Female |
2 - USB Type-A (4 pin) USB 2.0 Female | |
Host Connectors | 8 - DVI-I (29 pin) Female |
8 - USB B (4 pin) Female | |
Software | |
OS Compatibility | OS Independent; No additional software or drivers required |
Special Notes / Requirements | |
Note | Supports SUN keyboard emulation |
Power | |
Center Tip Polarity | Positive |
Input Current | 1.8 A |
Input Voltage | 110 ~ 240V AC |
Output Current | 4 A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 48 |
Power Source | AC Adapter Included |
Environmental | |
Humidity
|
0 ~ 80%RH |
Operating Temperature |
0°C to 40°C (32°F to 104°F)
|
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 1.7 in [44 mm] |
Product Length | 7.1 in [180 mm] |
Product Width | 17.2 in [438 mm] |
Product Weight | 123.5 oz [3500 g] |
Packaging Information | |
Shipping (Package) Weight |
8.8 lb [4 kg] |
What's in the Box | |
Included in Package | 1 - 8 Port DVI USB KVM Switch |
1 - Set Rack-mount brackets | |
3 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
1 - User Manual | |
Warranty | 3 Years |
*Product appearance and specifications are subject to change without notice.
Brand | StarTech |
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
