Startech U2m2e125 M.2 Drive To U.2 (sff-8639) Host Adapter
Delivery
Overview
M.2 to U.2 Adapter - M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 PCIe NVMe SSDs - M.2 Drive Adapter - M.2 PCIe SSD Adapter - NVME M.2 SSD Adapter - SFF-8639 Adapter
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
OVERVIEW

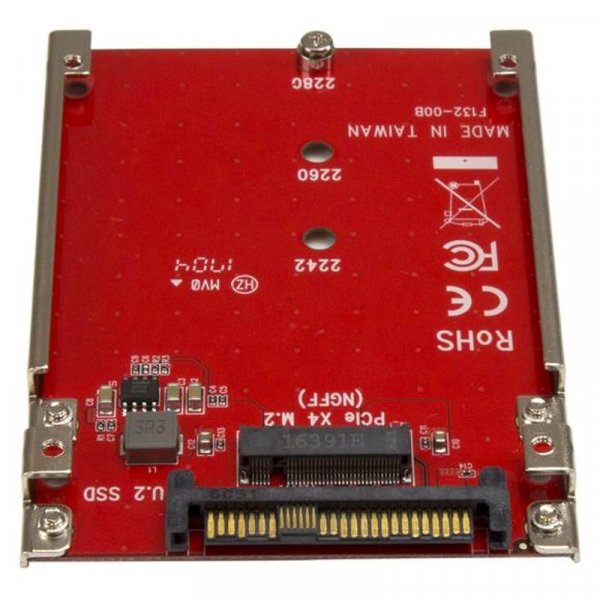

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.
The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Connect an M.2 NVMe SSD to your computer or server through an available U.2 (SFF-8639) slot to boost system speed and increase internal data storage.
Ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a computer or server solution.
Get ultra-fast data access, ideal for high-performance workstations
TECHNICAL SPECIFICATIONS:
| Hardware | |
| Bus Type | PCI Express |
| Compatible Drive Types | M.2 (NGF, M-Key, PCIe x4) |
| Drive installation | Fixed |
| Fan(s) | No |
| Interface | U.2 (SFF-8639; PCIe x4) |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2242 |
| 2260 | |
| 2280 | |
| Connectors | |
| Drive Connectors | 1 - M.2 (NGFF, M-Key, PCIe x4) |
| Host Connectors | 1 - U.2 (SFF-8639, x4 PCIe, NVMe) |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | +5°C to +50°C (41°F to 122°F) |
| Storage Temperature | -25°C to +70°C (-13°F to 158°F) |
| Physical Characteristics | |
| Color | Red |
| Product Height | 89.8 in [2280 mm] |
| Product Length | 0.3 in [7 mm] |
| Product Width | 2.8 in [70 mm] |
| Product Weight | 1.3 oz [36g] |
| Packaging Information | |
| Shipping (Package) Weight | 3.6 oz [102 g] |
| What's in the Box | |
| Included in Package | 1 - M.2 drive to U.2 adapter |
| 4 - adapter-mounting screws | |
| 1 - set of drive-mounting hardware | |
| 1 - quick start guide | |
| Warranty Information | |
| Warranty | 2 Years |
*Product appearance and specifications are subject to change without notice.
| Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
