Startech Unisldshf192 2u Adjustable Vented Sliding Rack Shelf
Overview
2U Vented Sliding Rack Shelf w/ Cable Management Arm & Adjustable Mounting Depth - 50lbs / 22.7kg
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview

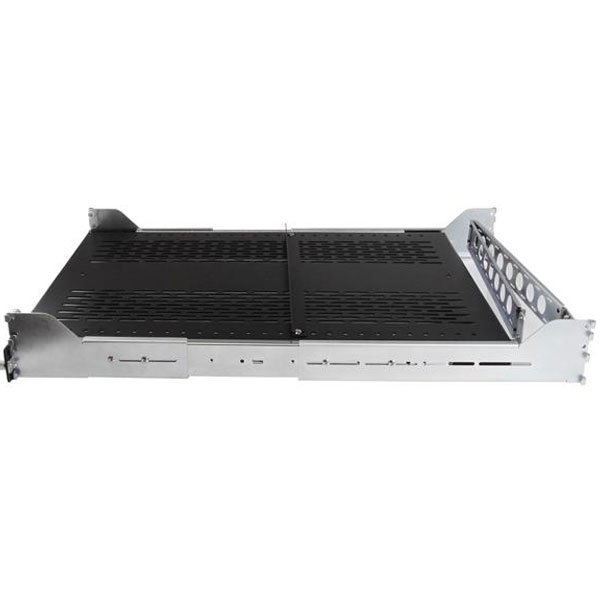

The UNISLDSHF192 Adjustable Sliding Rack Shelf lets you add a vented, sliding shelf with cable management into virtually any 4-post server rack or cabinet.
The adjustable mounting depth design allows the shelf to be installed easily into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in (802.2mm). The sliding rails also offer a locking mechanism to stop the shelf from sliding out too far, or sliding back into the rack before maintenance is complete.
Offering a weight capacity of up to 50 lbs (22.7 kg), this sliding rack shelf features a ventilated, cold-rolled steel construction for increased airflow and durability in your server room or wiring closet installations.
For ease in routing cables neatly through your rack, we've included a reversible cable management arm that can be attached to the back of the shelf, plus an adjustable bezel to keep your equipment where you want it on the shelf.
2-year warranty.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Color |
Black |
|
Enclosure Thickness |
0.1 in [2 mm] |
|
Enclosure Type |
Steel |
|
External Depth |
24 in [609.6 mm] |
|
External Height |
3.4 in [85.2 mm] |
|
External Width |
19 in [483 mm] |
|
Maximum Mounting Depth |
31.6 in [802.2 mm] |
|
Minimum Mounting Depth |
27.6 in [702.2 mm] |
|
Hardware |
|
|
Industry Standards |
EIA RS310-D |
|
Mounting Options |
Front Mount (Front and Rear) |
|
U Height |
2U |
|
Performance |
|
|
Weight Capacity |
50.1 lb [22.7 kg] |
|
Packaging Information |
|
|
Shipping (Package) Weight |
21.8 lb [9.9 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - Shelf Assembly |
|
|
2 - Ear Hook and Slide Assembly (Left / Right) |
|
|
2 - Ear Hook Bracket (Left / Right) |
|
|
1 - Cable Management Assembly |
|
|
1 - Instruction Manual |
| Brand | StarTech |
