StarTech USB Motherboard Header to Serial Adapter
Overview
24in Internal USB Motherboard Header to Serial RS232 Adapter - USB to DB9 - USB to Serial Port

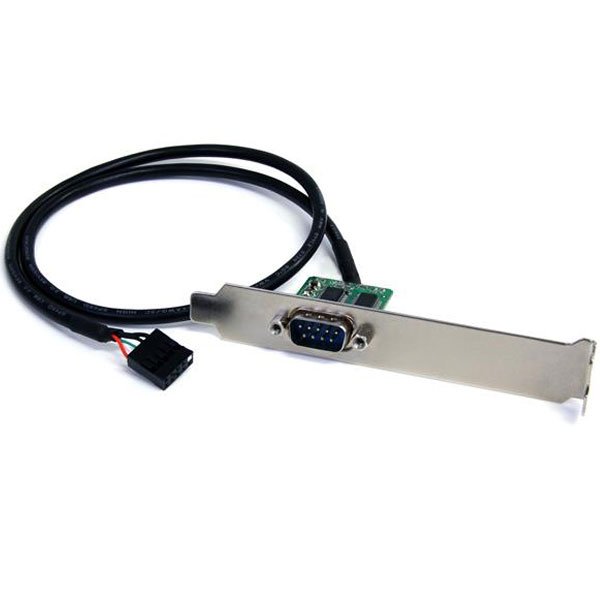

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.
Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
1-year warranty and free lifetime technical support.
Product Specifications
|
Warranty Information |
|
|---|---|
|
Warranty |
2 Years |
|
Physical Characteristics |
|
|
Cable Length |
2 ft [0.6 m] |
|
Product Height |
0.5 in [12 mm] |
|
Product Length |
1.8 in [45 mm] |
|
Product Weight |
1.1 oz [31 g] |
|
Product Width |
4.8 in [123 mm] |
|
Hardware |
|
|
Bus Type |
Motherboard Header |
|
Card Type |
Standard Profile (LP bracket incl.) |
|
Chipset ID |
FTDI - FT232RL |
|
Interface |
Serial |
|
Port Style |
Integrated on Card |
|
Ports |
1 |
|
Performance |
|
|
Data Bits |
7, 8 |
|
FIFO |
256 Bytes |
|
Max Baud Rate |
115.2 Kbps |
|
Parity |
None, Odd, Even, Space, Mark |
|
Serial Protocol |
RS-232 |
|
Stop Bits |
1, 2 |
|
Connector(s) |
|
|
External Ports |
1 - DB-9 (9 pin; D-Sub) Male |
|
Internal Ports |
1 - IDC (10 pin; Motherboard Header) Female |
|
Software |
|
|
Microsoft WHQL Certified |
Yes |
|
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server 2012, 2008 R2, 2003 Mac OS 10.x (tested up to 10.10) Linux 2.4.x / 2.6.x |
|
Environmental |
|
|
Humidity |
5~85% RH |
|
Operating Temperature |
-10°C to 80°C (14°F to 176°F) |
|
Storage Temperature |
-20°C to 100°C (-4°F to 212°F) |
|
Packaging Information |
|
|
Shipping (Package) Weight |
0.4 lb [0.2 kg] |
|
What's in the Box |
|
|
Included in Package |
1 - USB to RS232 Serial Adapter |
|
|
1 - Low profile bracket |
|
|
1 - Driver CD |
|
|
1 - Instruction Manual |
| Brand | StarTech |
| Ports | 1 |
| Dimension |
Product Height 0.5 in [12 mm]
Product Length 1.8 in [45 mm] Product Width 4.8 in [123 mm] |
| Interface | Serial |
