StarTech USB Sound Card Audio Adapter w/ SPDIF
Delivery
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview

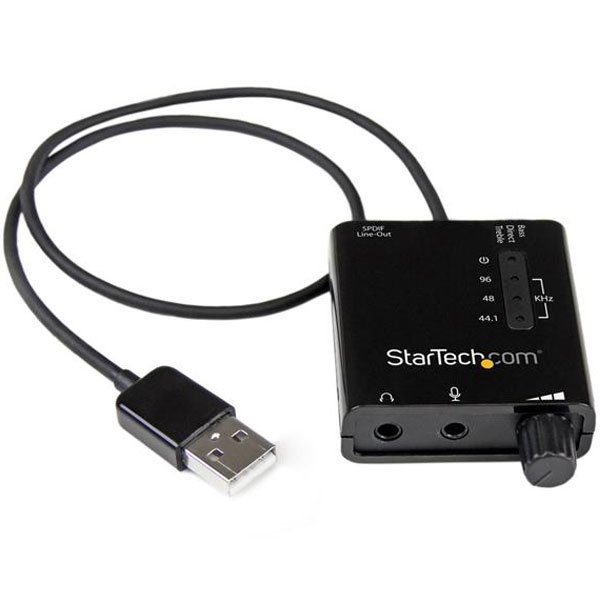

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby Digital 5.1 surround sound (AC3) and DTS pass-through (Note: 5.1 surround sound is supported in Windows only).
This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Warranty Information |
|
---|---|
Warranty |
2 Years |
Physical Characteristics |
|
Cable Length |
16 in [406.5 mm] |
Color |
Black |
Enclosure Type |
Plastic |
Product Height |
0.6 in [16 mm] |
Product Length |
1.9 in [47 mm] |
Product Weight |
1.4 oz [40 g] |
Product Width |
1.8 in [46 mm] |
Hardware |
|
Bus Type |
USB 2.0 |
Chipset ID |
VIA - VT1630A |
Performance |
|
Audio Specifications |
96 KHz / 24-bit Sample Rate Approx 91dB SNR (A-weighting) 16-100ohm Headphone Drive Ability |
Connector(s) |
|
Connector Type(s) |
1 - 3.5 mm Mini-Jack (3 Position) Female |
|
1 - 3.5 mm Mini-Jack (4 Position) Female |
|
1 - 3.5mm Mini-Toslink (SPDIF; Optical) Female |
|
1 - USB A (4 pin) Male |
Software |
|
OS Compatibility |
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003 Mac OS 10.x (tested up to 10.8) Linux |
Special Notes / Requirements |
|
Note |
5.1 surround sound output is supported in Windows only |
System and Cable Requirements |
Available USB Port |
Indicators |
|
LED Indicators |
1 - Power |
|
3 - Playback / Recording sample rate |
Power |
|
Power Source |
USB-Powered |
Environmental |
|
Humidity |
10~90% RH (Non-Condensing) |
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
Storage Temperature |
0°C to 70°C (32°F to 158°F) |
Packaging Information |
|
Shipping (Package) Weight |
4.2 oz [119 g] |
What's in the Box |
|
Included in Package |
1 - USB Stereo Audio Adapter |
|
1 - Software CD |
|
1 - Instruction Manual |
Brand | StarTech |
Interface | USB 2.0 |
Output | S/PDIF digital output with AC3 |
Type | External |
