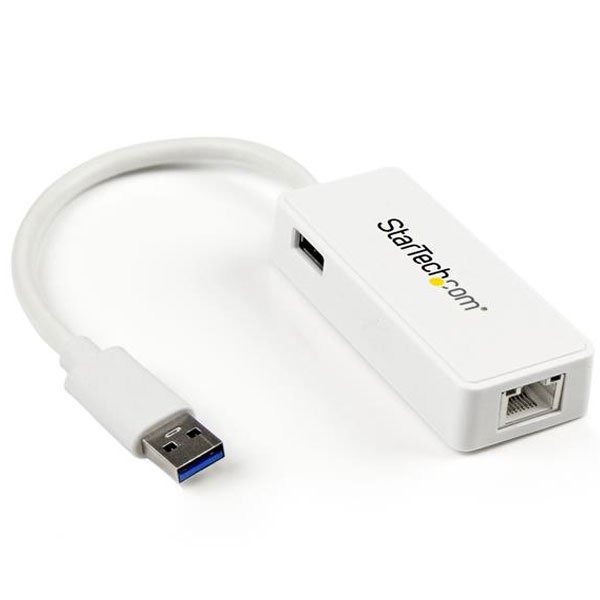

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Product Overview
The USB31000SPTW USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your Macbook or Ultrabook computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).
The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Warranty Information |
|
Warranty |
2 Years |
Physical Characteristics |
|
Cable Length |
6.1 in [155 mm] |
Color |
White |
Enclosure Type |
Plastic |
Product Height |
0.7 in [17 mm] |
Product Length |
5 in [126 mm] |
Product Weight |
1.5 oz [43 g] |
Product Width |
1.4 in [35 mm] |
Hardware |
|
Bus Type |
USB 3.0 |
Chipset ID |
ASIX - AX88179 VIA - VL811 |
Industry Standards |
IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
Interface |
RJ45 (Gigabit Ethernet) |
Ports |
1 |
USB Pass-Through |
Yes |
Performance |
|
Auto MDIX |
Yes |
Compatible Networks |
10/100/1000 Mbps |
Full Duplex Support |
Yes |
Jumbo Frame Support |
4K max. |
Max Distance |
100 m / 330 ft |
Maximum Data Transfer Rate |
5 Gbps (USB 3.0) 2 Gbps (Ethernet - Full-Duplex) |
Type and Rate |
USB 3.0 - 5 Gbit/s |
Connector(s) |
|
Connector Type(s) |
1 - RJ-45 Female |
|
1 - USB 3.0 A (9 pin; SuperSpeed) Female |
|
1 - USB 3.0 A (9 pin; SuperSpeed) Male |
Software |
|
OS Compatibility |
Windows 10 (32/64), 8.1 (32/64), 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003(32/64) Mac OS 10.6 - 10.10 - VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 - 3.17.0 |
Special Notes / Requirements |
|
System and Cable Requirements |
Available USB Port |
Indicators |
|
LED Indicators |
1 - 10/100 Link/Activity (Green) |
|
1 - Gigabit Link/Activity (Amber) |
Power |
|
Power Source |
USB-Powered |
Environmental |
|
Humidity |
5~85% RH |
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
Packaging Information |
|
Shipping (Package) Weight |
4.5 oz [128 g] |
What's in the Box |
|
Included in Package |
1 - USB 3.0 Network Adapter |
|
1 - Driver CD |
|
1 - Instruction Manual |
Brand | StarTech |
Ports | 1 |
Dimension |
Product Height 0.7 in [17 mm] Product Length 5 in [126 mm] Product Width 1.4 in [35 mm] |
Speed |
1 - USB 3.0 A (9 pin; SuperSpeed) Female 1 - USB 3.0 A (9 pin; SuperSpeed) Male 10/100/1000 |
Cable Type | USB 3.0 |
Interface | RJ45 (Gigabit Ethernet) |
