Startech Vs222hdq 2x2 Hdmi Matrix Auto Switcher - 1080p
Delivery
Overview
2X2 HDMI Matrix Switch with Automatic and Priority Switching 2 In 2 Out HDMI Matrix Splitter Switcher Box with Auto and Priority Selector 1080p
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
Customer Also Bought
Customer Also Viewed
Features
- Auto switching
- Priority switching
- Built-in manual control console
- 2x2 Matrix switching
- EDID emulation

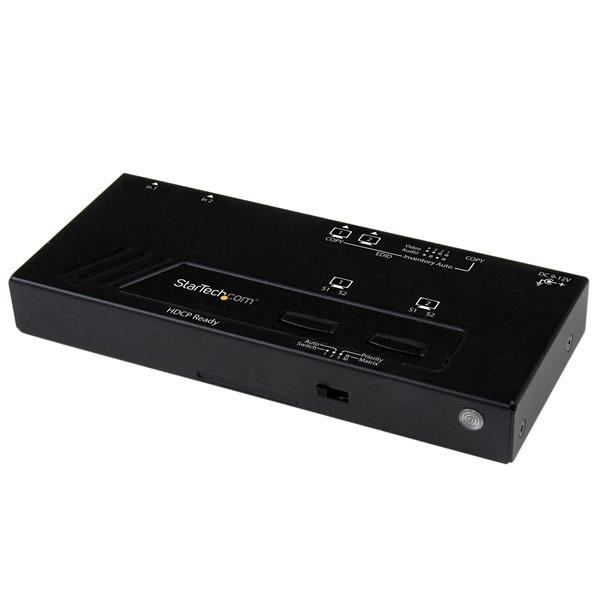

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection: Independently switch two displays between two video sources.
Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.
| Connector(s) | |
| Connector A | HDMI (19 pin) Female |
| Connector B | HDMI (19 pin) Female |
| Environmental | |
| Humidity | 0%~80% |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Hardware | |
| Audio | Yes |
| Cabling | HDMI |
| Output Signal | HDMI |
| Ports | 2 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | Display #1 - source #1 activated |
| Display #1 - source #2 activated | |
| Display #2 - source #1 activated | |
| Display #2 - source #2 activated | |
| Packaging Information | |
| Shipping (Package) Weight | 545 g [19.2 oz] |
| Performance | |
| Audio Specifications | 7.1 surround sound |
| Max Distance | 10 m / 33 ft |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Supported Resolutions | 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 157 mm [6.2 in] |
| Product Weight | 290 g [10.2 oz] |
| Product Width | 65 mm [2.6 in] |
| Power | |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | foot pad set |
| HDMI matrix switch | |
| instruction manual | |
| mounting kit | |
| remote control | |
| universal power adapter (NA, EU, UK, AU) | |
| Brand | StarTech |
- Manufacturer Warranty
- 2 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.StarTech.com.au
