Details:

2×2 MIMO MAXtream TDMA

• 23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

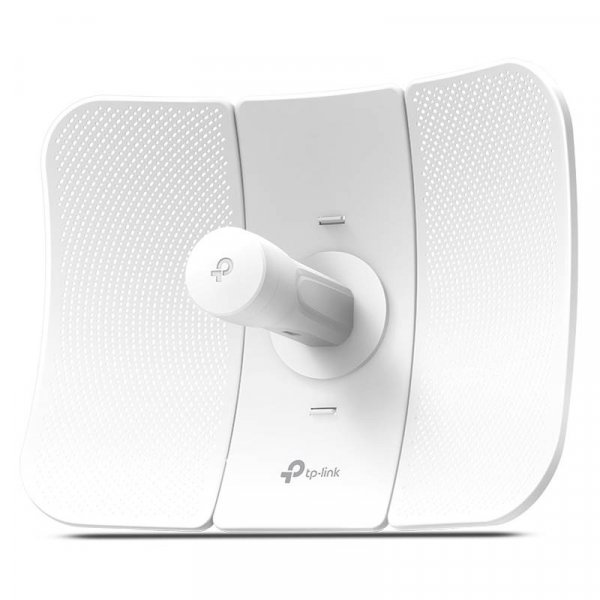

• With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Stable Structural Design and Flexible Installation

• Snap-lock parts make assembly simple and convenient
• Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
• Sturdy design ensures stability in windy conditions

Compact and Lightweight Packaging

• Small and lightweight boxes
• benefit shipping, logistics and retail.

Pharos Control – Centralized Management System

• CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device iscovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.

Specifications:

HARDWARE FEATURES

• Processor:Qualcomm 560MHz CPU, MIPS 74Kc
• Memory:64MB DDR2 RAM,8MB Flash
• Interface:
  • 1 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
  • 1 Reset Button
• Power Supply:
  • Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
• Dimensions:360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
• Antenna Gain: 23dBi
• Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
• Protection:
  • 15KV ESD Protection
  • 6KV Lightning Protection
• Enclosure:
  • Material: Outdoor PC stabilized plastic
  • Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

• Wireless Standards:IEEE 802.11a/n
• Proprietary Protocol:TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds:
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
• Frequency 5.15~5.85GHz
• Transmit Power: Max. 29dBm/790mW (Adjustable power by 1dBm)

SOFTWARE FEATURES

• Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
• Network Configuration:
  • WAN: Static/Dynamic/PPPoE/L2TP/PPTP
  • LAN: Static/Dynamic/DHCP
  • Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
  • Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
• Wireless Configurations:
  • Pharos MAXtream TDMA Technology
  • Selectable Channel Width: 5/10/20/40MHz
  • Auto Channel Selection
  • Transmit Power Control
  • Dynamic Frequency Selection(DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
  • 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging(AP Mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management:
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
• System Tools:
  • Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
• System-level Optimizations:
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

OTHERS

• Certification CE, FCC, RoHS, IP65
• Package Contents
  • Outdoor Wireless CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
• System Requirements
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
  • Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Environment
  • Operating Temperature: -40C~70C (-40F~158F)
  • Storage Temperature: -40C~70C (-40F~158F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
