Overview

Details:

What This Product Does

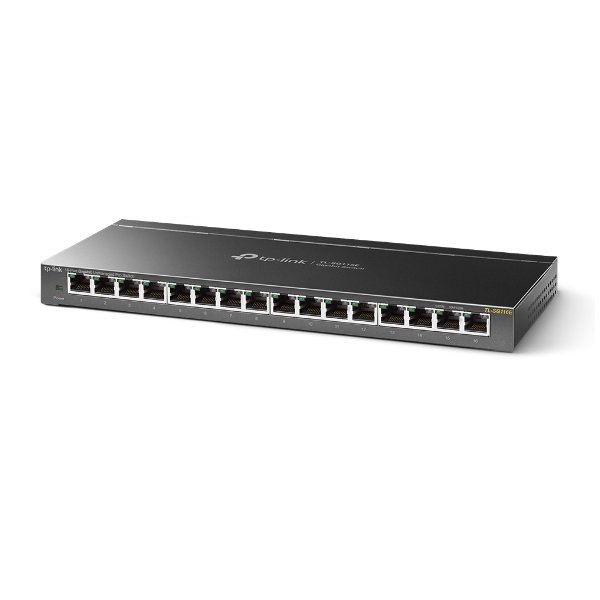

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is useful in both simple and more demanding network environments.

Easy to Use

Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.

Durable Metal Casing

The interior components of TL-SG116E are protected by the high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or workbenches.

Additional Software Features

TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behaviour. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.

Go Green with Your Ethernet

TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimising your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Specifications:

HARDWARE FEATURES

• Standards and Protocols
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface
• 16 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 9VDC/0.6A)
• Power Consumption: Maximum: 9.27W (220V/50Hz)
• Dimensions (W x D x H): 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

PERFORMANCE

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.81Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1Mb
• Jumbo Frame: 9KB

SOFTWARE FEATURES

• Quality of Service
• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN
• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward

OTHERS

• Certification: FCC, CE, RoHS
• Package Contents
• TL-SG116E
• Power Cord
• Installation Guide
• Rubber Feet
• System Requirements
• Microsoft® Windows® for running Utility
• Environment
• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
