Ubiquiti Camera Ai Theta, 8mp Wide Angle Lens (97.5Ëš H), 12mp Fisheye 360Ëš Lens, Colour Lcm Display For Device Status Monitoring
no surcharge fee
Paypal/MasterCard/Visa/Amex
$547
SKU
UVC-AI-Theta
SKU#: UVC-AI-Theta / ITEM NO: 951308 / BRAND: Ubiquiti
$547.00
Shipping Calculator:
Loading...
The world’s first security camera system designed for interior design professionals.
Features:
8 MP wide angle lens 97.5Ëš(H) for wall mounted application (included)
12 MP fisheye 360° lens for ceiling mounted applications (included)
Two-way audio (UVC-AI-Theta-Audio sold separately)
Advanced AI processing engine for long-range smart detections
Color LCM display for device status monitoring
Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
Mechanical
Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5')
UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7')
Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3')
Cable jacket enclosure material PVC
Cable length 1 m (3.3 ft)
Cable diameter 3.7 mm (0.15')
Cable jacket material Woven fabric
Cable weight 18 g (0.63 oz)
Cable connector type Theta proprietary
Optics
Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor
UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens Fixed focal length
View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
Video
Video compression H.264, MJPEG
Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
Max. frame rate UVC-AI-Theta-Lens: 24 FPS
UVC-AI-Theta-Lens-360: 20 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

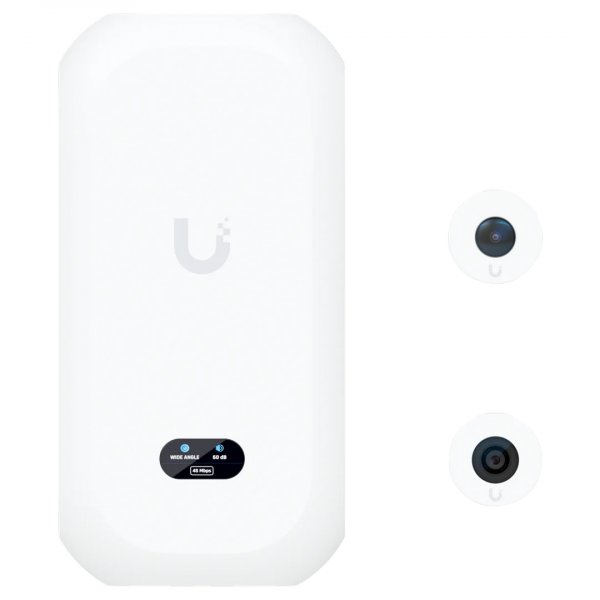

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
