Overview

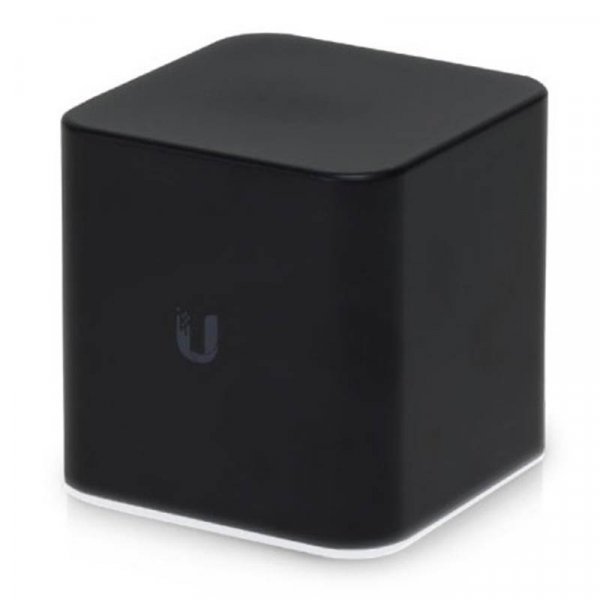

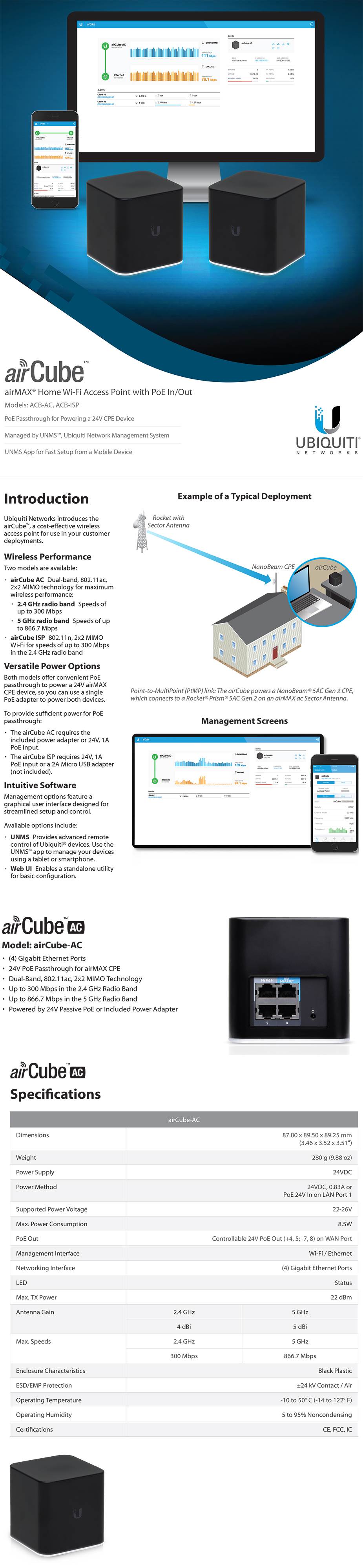

Once installed, this Wi-Fi access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1167 Mbps. If that's not enough, clients can plug Ethernet-enabled devices in to any of the four Gigabit Ethernet ports for a more reliable wired network connection. The airCube is powered by a 24V Passive PoE connection or plug in the included power adapter when PoE power is unavailable. PRODUCT HIGHLIGHTS 802.11ac Wi-Fi Network Standard Up to 1167 Mbps Wi-Fi Data Throughput 2.4 GHz & 5 GHz Frequencies Internal Dual-Band Antennas Wireless Performance Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance: • 2.4 GHz radio band speeds of up to 300 Mbps • 5 GHz radio band speeds of up to 866.7 Mbps Versatile Power Options Convenient PoE passthrough to power a 24 V airMAX CPE device, so you can use a single PoE adapter to power both devices. To provide sufficient power for PoE passthrough: • The airCube AC requires the included power adapter or 24V, 1A PoE input Power Supply 24 VDC PoE PoE Out Controllable 24 V PoE out (+4, 5; -7, 8) on WAN port Management Interface Wi-Fi / Ethernet Networking Interface 4 x Gigabit Ethernet ports Antenna Gain 2.4 GHz 4 dBi 5 GHz 5 dBi Temperature & Humidity Operating Temperature -14 to 122° F / -10 to 50°C Operating Humidity 5 to 95% non-condensing
