Ubiquiti Switch Enterprise 48-port Poe+ 48x2.5g Ports, Ideal For Wi-fi 6 Ap, 4x 10g Sfp+ Ports For Uplinks, Managed Layer 3 Switch
Delivery
In Stock
Usually ships within 24 hours*
no surcharge fee
Paypal/MasterCard/Visa/Amex
$3,149
Our Best Price
SKU
USW-Enterprise-48-PoE
SKU#: USW-Enterprise-48-PoE / ITEM NO: 854110 / BRAND: Ubiquiti
$3,149.00
Shipping Calculator:
Loading...

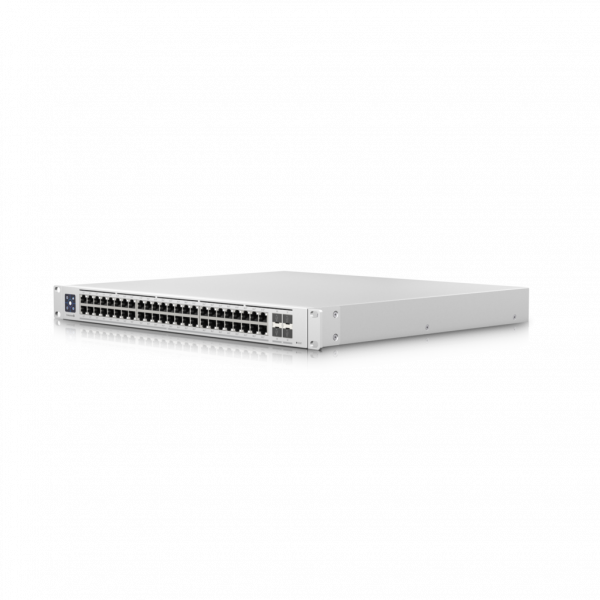

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3' LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3' LCM color touchscreen with AR switch management
(48) 2.5GbE, 802.3at PoE+ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
720W total PoE supply
Layer 3 switching features
Mechanical
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7')
Weight Without Mount: 6.2 kg (13.67 lb)
With Mount: 6.3 kg (13.89 lb)
Enclosure Material SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 160 Gbps
Switching Capacity 320 Gbps
Forwarding Rate 238.095 Mpps
Max Power Consumption (Excluding PoE Output) 150W
Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply AC/DC, Internal, 100-240V, 10A Max.
Management Interface Ethernet In-Band
Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces (4) 1/10G SFP+ ports
PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE 720W
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
