Ubiquiti Unifi 48 Port Managed Gigabit Layer2 & Layer3 Switch - 48x Gigabit Ethernet Ports 4x Sfp Port Touch Display
Delivery
In Stock
Usually ships within 24 hours*
no surcharge fee
Paypal/MasterCard/Visa/Amex
$819
SKU
USW-48
SKU#: USW-48 / ITEM NO: 802532 / BRAND: Ubiquiti
$819.00
Shipping Calculator:
Loading...
The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(48) Gigabit RJ45 ports
(4) 1G SFP ports
Layer 2 features
Fanless, silent cooling
1.3' touchscreen display, supports UniFi Network AR
Managed by UniFi Network Controller (5.13.10 or later)
Product Specifications:
MECHANICAL
Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72')
Weight Without Mount: 3.9 kg (8.6 lb)
With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics SGCC Steel
HARDWARE
Total Non-Blocking Line Rate 52 Gbps
Max. Power Consumption 40W
Forwarding Rate 77.376 Mpps
Power Method Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply AC/DC, Internal, 60W
Supported Voltage Range 100 - 240VAC
Networking Interfaces (48) 10/100/1000 Mbps Ethernet RJ45 Ports
(4) 1 Gbps SFP Ports
Management Interface Ethernet In-Band
Modes SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature -15 to 40° C (5 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
LEDS
System (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet Green: 1G, Amber: 10/100 Mbps
SFP Green: 1G

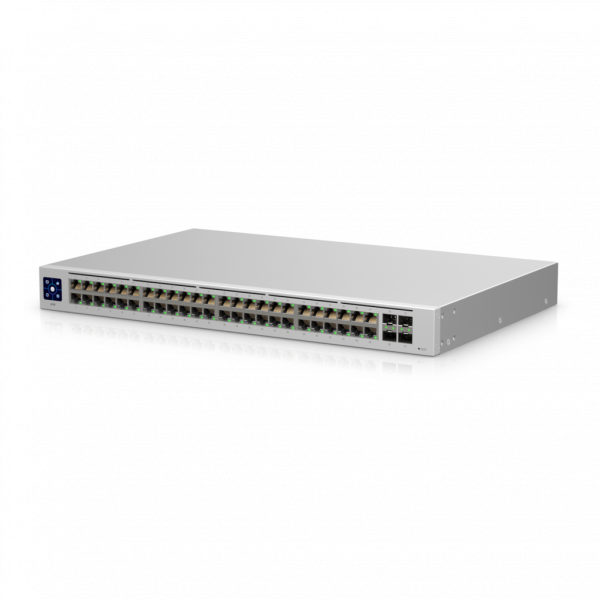

Picture shown is for illustration purpose only
Please refer to Manufacturer SKU for the exact details
